24Ah 12V, Battery, SAFI

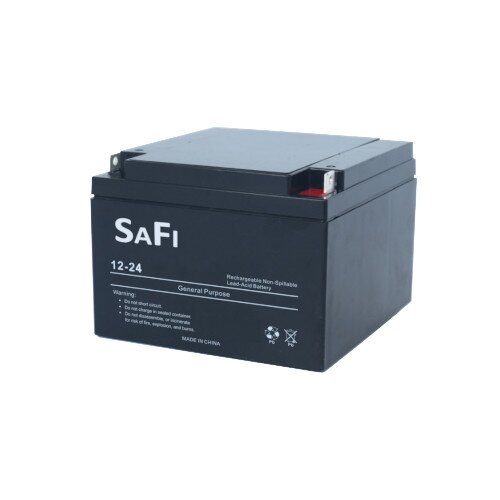

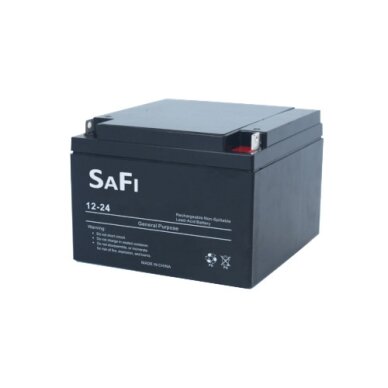

SAFI 24Ah 12V Maintenance Free Battery

Maintenance free 12 V, 24 Ah standby use battery designed for reliable backup power applications. It is suitable for UPS/EPS systems, security power supplies, power utility applications and other standby power installations.

Main Features:

• 12 V, 24 Ah maintenance free standby battery
• Designed for standby use with 5-year design life in float service
• Nominal capacity: 24.0 Ah at 20-hour rate to 1.75 V/cell
• Stable quality and reliable standby service life
• Outstanding consistency in standby systems
• Low self-discharge rate for longer storage performance
• Suitable for UPS/EPS, security power supply and power utility applications
• Maximum discharge current: 360 A for 5 seconds at 25 °C
• Cycle use charging voltage: 14.7-14.9 V
• Standby use charging voltage: 13.6-13.8 V
• Recommended operating temperature: 15 °C to 25 °C

Specifications:

• Model: SAFI 24Ah 12V
• Battery type: standby use maintenance free battery
• Nominal voltage: 12 V
• Nominal capacity: 24 Ah / 20 hr
• Internal resistance: 12 mOhms, fully charged at 25 °C
• Maximum charge current: 5.7 A
• Operating temperature for discharge: -15 °C to +35 °C
• Operating temperature for charge: 0 °C to +35 °C
• Storage temperature: -15 °C to +35 °C
• Self-discharge: approximately 3% capacity loss per month at 20 °C
• Dimensions: 166 × 175 × 125 mm
• Total height: 125 mm
• Weight: 7.5 kg
• Terminal type: T4

Notes:

• For standby power systems, security systems and UPS/EPS applications
• Datasheet values are subject to revision and should be confirmed before project specification
