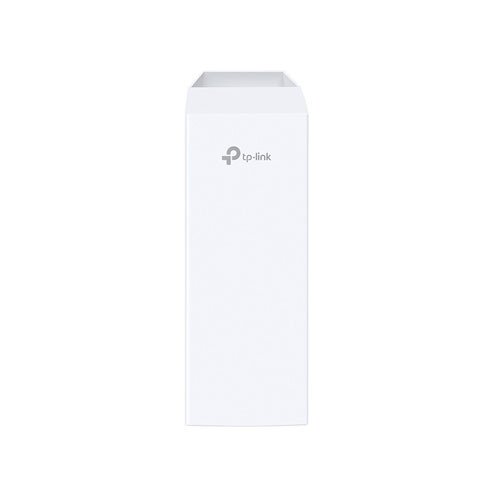

CPE210 Directional wireless antenna 300MBPS, OMADA

Product Features

• Built-in 9 dBi 2×2 dual-polarized directional MIMO antenna
• Adjustable transmit power from 0 to 27 dBm (500 mW)
• System-level optimization for more than 5 km long-range wireless transmission
• TP-LINK Pharos MAXtream TDMA technology improves throughput, capacity, and latency, ideal for PTMP applications
• Centralized Management System – Pharos Control
• Operating modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
• Outdoor stabilized enclosure with IPX5 waterproof certification
• Dual Ethernet ports and integrated grounding terminal
• 6 kV lightning protection and 15 kV ESD protection
• Passive PoE adapter supports up to 60 m (200 ft) PoE deployment and enables remote device reset
• Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Selectable bandwidth: 5/10/20/40 MHz
• Tools: Throughput Monitor, Spectrum Analyzer, Speed Test, and Ping
• Easy antenna alignment using wireless signal quality indicators via the Web UI

Product Specifications

Hardware Features

• Processor: Qualcomm Atheros 560 MHz CPU, MIPS 74Kc
• Memory: 64 MB DDR2 RAM, 8 MB Flash
• Interfaces:
  • 1 × 10/100 Mbps shielded Ethernet port (LAN0, Passive PoE in)
  • 1 × 10/100 Mbps shielded Ethernet port (LAN1, Passive PoE passthrough)
  • 1 × grounding terminal
  • 1 × reset button
• Power supply:
  • Passive PoE via LAN0 (+4,5 pins; -7,8 pins)
  • Voltage range: 16–27 V DC
• Max power consumption: 10.5 W
• Note: when using Passive PoE, power draw may increase depending on cable length
• Dimensions: 224 × 79 × 60 mm
• Antenna: Built-in 9 dBi 2×2 dual-polarized directional antenna
• Beam width: 65° (H-plane) / 35° (E-plane)
• Protection: 15 kV ESD protection, 6 kV lightning protection
• Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof certification

Wireless Features

• Wireless standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Proprietary protocol: TDMA mode (with Pharos MAXtream enabled)
• Frequency: 2.4–2.483 GHz
• Wireless speeds:
  • Up to 300 Mbps (40 MHz, Dynamic)
  • Up to 144.4 Mbps (20 MHz, Dynamic)
  • Up to 72.2 Mbps (10 MHz, Dynamic)
  • Up to 36.1 Mbps (5 MHz, Dynamic)
• Transmit power: up to 27 dBm / 500 mW (adjustable in 1 dBm steps)
• Note: maximum transmit power may vary by channel and local regulations

Software Features

• Pharos MAXtream TDMA technology, 802.11b/g/n modes
• Selectable channel width: 5/10/20/40 MHz, automatic channel selection
• Transmit power control, DFS, WDS enable/disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
• SSID broadcast enable/disable, Multi-SSID with VLAN tagging (AP mode only)
• Distance/ACK timeout, wireless MAC address filtering
• Advanced wireless: Beacon interval, RTS threshold, fragmentation, DTIM, AP isolation, Short GI, WMM

Management & Tools

• Discovery and remote management via Pharos Control
• HTTP/HTTPS web-based management
• System log, SNMP agent (v2c), Ping Watch Dog
• Dynamic DDNS, SSH server
• Wireless signal quality indicators: signal strength, noise, transmit CCQ, CPU, memory
• Monitors: throughput, stations, interfaces, ARP, routes, WAN, DHCP
• Tools: spectrum analyzer, speed test, ping, traceroute
• System optimizations: IGMP snooping/proxy, hardware watchdog

PoE Adapter Features

• Dimensions: 110 × 57 × 33.5 mm
• Input: 100–240 VAC @ 50/60 Hz
• Input current: 0.8 A max @ 100 VAC
• Output: 24 V DC, 1.0 A max (+4,5 pins; -7,8 pins), supports up to 60 m PoE
• Efficiency: >80%
• Status LEDs:
  • 0–0.8 A: Green
  • 0.8–1.0 A: Red
• Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
• Interfaces: AC jack with earth ground, 2 × shielded 10/100/1000 Mbps Ethernet (Power+Data / Data)
• Button: Remote reset button

Others

• Certifications: CE, FCC, RoHS, IPX5
• Package contents:
  • Outdoor Wireless CPE
  • 24 V 1 A Passive PoE Adapter
  • Pole mounting straps
  • AC power cord
  • Installation guide
• System requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX, Linux
• Note: recommended browsers are Chrome, Safari, and Firefox (IE not recommended)
• Environment:
  • Operating temperature: -30°C to 70°C (-22°F to 158°F)
  • Storage temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 5% to 95% non-condensing
