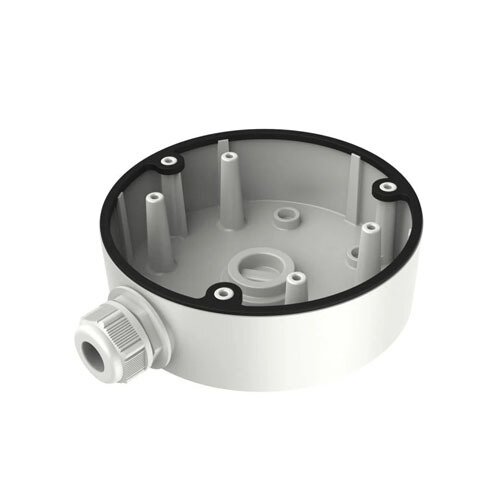

DS-1280ZJ-DM21, Junction box, White, Hikvision

Hikvision DS-1280ZJ-DM21 is a white junction / mounting box designed for compatible Hikvision dome cameras. It provides a neat and secure installation base, helps conceal cable connections, and gives the camera setup a clean, professional finish.

Main features:

• Designed for Hikvision dome cameras
• Aluminum alloy construction
• Hikvision white finish
• Surface spray treatment for additional protection
• Side and bottom cable outlet options
• Interchangeable bottom waterproof cover and side gland nut
• Waterproof design
• Dimensions: Ø 137 mm × 42 mm
• Weight: approx. 280 g
• Maximum load capacity: up to 4.5 kg

Notes:

• The junction box should be installed on a flat surface.
• Waterproof rubber / sealing is required for outdoor applications.
• The mounting surface must support at least 3 times the total weight of the camera and mount.
• Check compatibility with the specific camera model before installation.
