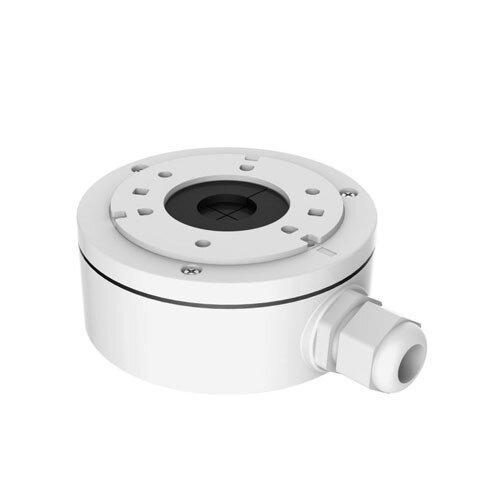

DS-1280ZJ-XS, Junction box, Hikvision

Hikvision DS-1280ZJ-XS is a white junction / mounting box designed for compatible Hikvision dome cameras. It helps conceal cable connections, protects the installation, and provides a stable, professional mounting base for the camera.

Main features:

• Designed for Hikvision dome cameras
• Aluminum alloy construction
• Hikvision white finish
• Surface spray treatment for added protection
• Cable hole on the bracket for cleaner wiring
• Suitable for wall or ceiling installation
• Suitable for indoor and outdoor use
• Dimensions: 100 × 43.5 × 132.1 mm
• Weight: approx. 320 g
• Maximum load capacity: up to 4.5 kg

Notes:

• The junction box should be installed on a flat surface.
• Proper waterproof sealing is required for outdoor applications.
• The mounting surface must support at least 3 times the total weight of the camera and mount.
• Check compatibility with the specific camera model before installation.
