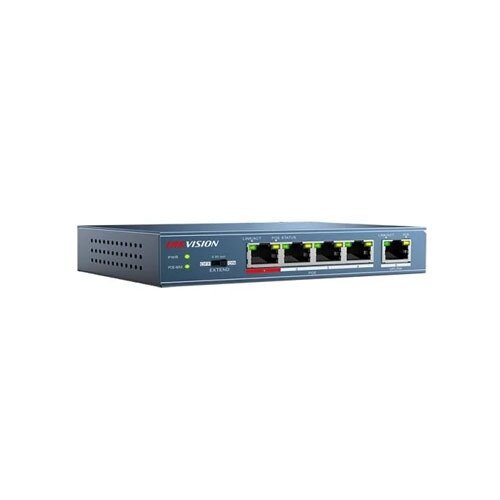

DS-3E0105P-E, 5-port switch(4 PoE, 1 Uplink), Hikvision

Hikvision DS-3E0105P-E is a compact 5-port unmanaged PoE network switch designed for IP cameras, video intercoms, and small network systems. It provides 4 PoE ports and 1 uplink port, supports Plug & Play operation, and allows compatible network devices to be connected and powered easily.

Main features:

• 4 × RJ45 10/100 Mbps PoE ports
• 1 × RJ45 10/100 Mbps uplink port
• Unmanaged PoE network switch
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Total PoE power budget: up to 30 W
• Switching capacity: 1 Gbps
• Packet forwarding rate: approx. 0.74 Mpps
• MAC address table: 2 K
• Supports Extend mode for longer transmission distance
• Supports PoE port power priority function
• Store-and-forward switching method
• Plug & Play – easy to use without additional configuration
• Supports desktop or wall mounting

Notes:

• This is a Fast Ethernet switch, so the port speed is 10/100 Mbps, not Gigabit.
• The total PoE budget should be checked against the power requirements of connected devices.
• Extend mode can increase transmission distance, but the data rate is reduced.
• The switch is unmanaged, so it does not provide advanced management functions such as VLAN or QoS configuration.
