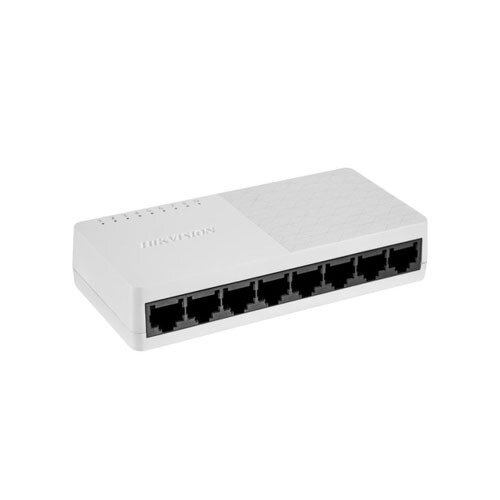

DS 3E0508D-O, Hikvision 8-port switch, Hikvision

Hikvision DS-3E0508D-O is a compact 8-port Gigabit unmanaged network switch designed for simple network expansion in homes, offices, or video surveillance systems. The device supports Plug & Play operation, so no complex configuration is required.

Main features:

• 8 × RJ45 10/100/1000 Mbps Ethernet ports
• Unmanaged Gigabit network switch
• Supports line-speed forwarding
• Switching capacity: 16 Gbps
• Packet forwarding rate: 11.9 Mpps
• MAC address table: 4 K
• Internal buffer: 1.5 Mbits
• Supports MDI/MDIX automatic cable detection
• Store-and-forward switching method
• Automatic MAC address learning and aging
• Compact plastic housing
• Supports desktop or wall mounting
• Plug & Play – easy to use without additional configuration

Notes:

• This model does not support PoE power, so connected devices require a separate power supply.
• The device is intended for indoor network infrastructure and small systems.
• Before installation, consider the number of connected devices and required network bandwidth.
• The switch is unmanaged, so it does not provide advanced management functions such as VLAN or QoS configuration.
