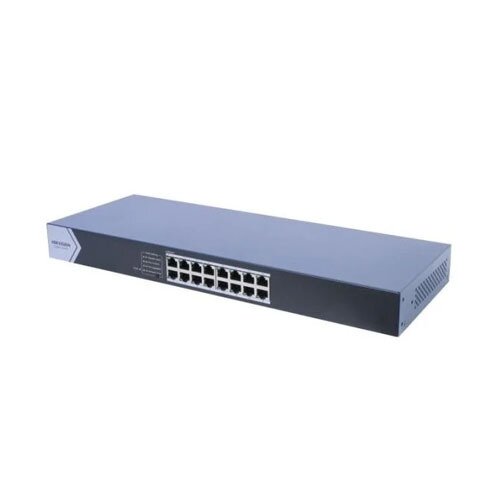

DS-3E0516P-E(C), 16-port switch, Hikvision

Hikvision DS-3E0516P-E(C) is a 16-port unmanaged Gigabit PoE network switch designed for IP cameras, video intercoms, and other network systems. It supports PoE power over network cable, allowing compatible devices to be connected and powered through a single cable.

Main features:

• 16 × RJ45 10/100/1000 Mbps PoE ports
• Unmanaged Gigabit PoE network switch
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Total PoE power budget: up to 230 W
• Maximum PoE power per port: up to 30 W
• Switching capacity: 32 Gbps
• Packet forwarding rate: approx. 23.81 Mpps
• MAC address table: 8 K
• Supports wire-speed forwarding
• Store-and-forward switching method
• Supports automatic MDI/MDIX cable detection
• 6 kV surge protection
• Solid metal housing
• Plug & Play – easy to use without additional configuration

Notes:

• The total PoE budget should be checked against the power requirements of connected cameras or other devices.
• The switch is unmanaged, so it does not provide advanced management functions such as VLAN or QoS configuration.
• When using PoE devices, it is recommended to keep a power reserve for stable system operation.
• Before installation, consider the total network bandwidth, number of cameras, and PoE power requirements.
