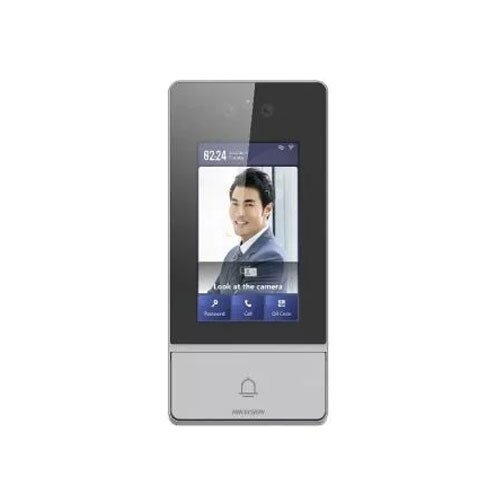

DS-KV9503-WBE1, 2MP IP Doorbell, Hikvision

Hikvision DS-KV9503-WBE1 is an Ultra Series IP video intercom villa door station with facial recognition, a 4.3-inch touchscreen, and a physical call button. It is designed for single-subscriber systems, supports multiple unlocking methods, and can call directly to the Hik-Connect app without an indoor station.

Main features:

• 1-subscriber IP video intercom door station
• 4.3-inch colorful LCD touchscreen
• Screen resolution: 800 × 480
• 2 × 2 MP cameras with IR supplement
• Field of view: 88° horizontal, 44° vertical
• IR supplement range up to 3 m
• One-touch physical call button
• Multiple unlocking methods: face, PIN code, card, QR code, and Bluetooth
• Can call directly to the Hik-Connect app without an indoor station
• Standard PoE power supply
• Built-in microphone and loudspeaker for two-way audio
• 120 dB WDR for improved imaging in challenging lighting
• 2 lock control outputs
• Protection rating: IP65
• Vandal resistance: IK08

Notes:

• The device is designed for outdoor installation, but cable connections should be properly protected from moisture.
• Remote control and app calling require network connection and compatible Hik-Connect configuration.
• PoE power requires a compatible PoE switch or injector.
• Before installation, check compatibility with the indoor station, electric lock, gate automation, and other system devices.
