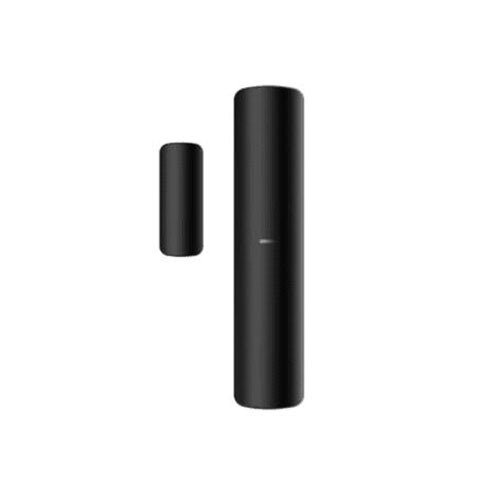

DS-PDMC-EG2-WE AX PRO, Wireless magnet, Black, Hikvision

Hikvision DS-PDMC-EG2-WE is a wireless magnetic door and window opening detector designed for the Hikvision AX PRO security system. The compact device detects when a protected door or window is opened and transmits an alarm signal to the control panel.

Main features:

• Magnetic door and window opening detection
• Maximum detection gap: 43 mm
• Suitable for different types of doors, including metal doors
• Built-in programmable wired alarm input
• Wired input supports NC, NO, and impulse-count modes
• Front and rear tamper protection
• Ambient temperature measurement function
• 868 MHz two-way Tri-X wireless communication
• AES-128 wireless communication encryption
• Wireless transmission range up to 1.6 km in open space
• Frequency hopping for protection against wireless interference
• Remote configuration through the app
• Enrollment by power-up, remote ID, or QR code
• Power supply: 1 replaceable CR123A battery
• Battery life up to 5 years in standby mode
• Detector dimensions: 24 × 104 × 24.4 mm
• Magnet dimensions: 13 × 34.4 × 11.4 mm
• Weight: approximately 59 g

Notes:

• The detector is designed for indoor installation and use.
• A compatible Hikvision AX PRO control panel is required.
• The actual wireless range depends on walls, building structures, interference, and installation conditions.
• Battery life depends on usage frequency, signal quality, and environmental conditions.
