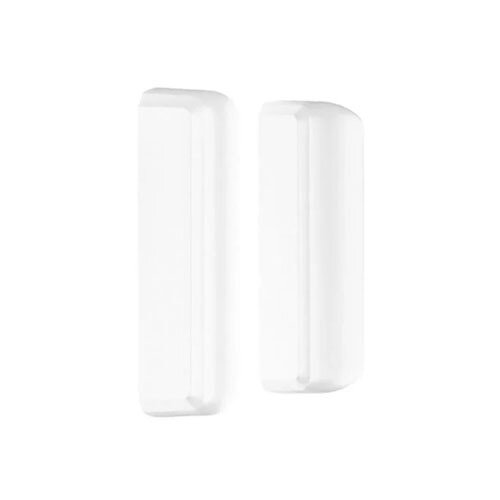

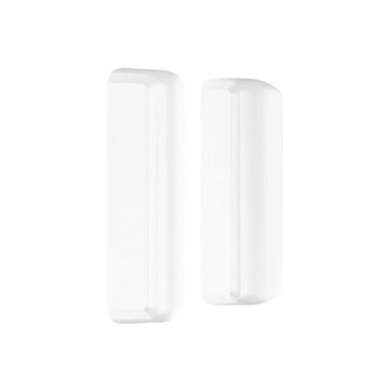

DS-PDMCX-E-WE AX PRO, Wireless outdoor magnet, HIKVISION

Hikvision DS-PDMCX-E-WE is a wireless outdoor magnetic opening detector designed for use with the Hikvision AX PRO security system. Its durable, UV-resistant IP66 housing makes it suitable for outdoor doors, gates, and windows, while the programmable input allows an additional wired detector to be connected.

Main features:

• Magnetic opening detection for doors, gates, or windows
• Maximum detection gap: 76 mm
• Programmable alarm input
• Alarm input supports NC, NO, and impulse-count modes
• Front and rear tamper protection
• Ambient temperature indication
• Signal strength indicator
• 868 MHz two-way Tri-X wireless communication
• AES-128 wireless communication encryption
• Wireless transmission range up to 1.6 km in open space
• Frequency hopping for protection against wireless interference
• Remote configuration through the app
• Enrollment by power-up, remote ID, or QR code
• Power supply: 1 replaceable CR123A battery
• Battery life up to 5 years in standby mode
• UV-resistant housing
• Protection rating: IP66
• Operating temperature: -20 °C to 60 °C
• Sensor dimensions: 40.5 × 146 × 40.9 mm
• Magnet dimensions: 30.5 × 146 × 40.9 mm
• Weight: approximately 247 g

Notes:

• The detector is designed for outdoor use.
• A compatible Hikvision AX PRO control panel is required.
• The actual wireless range depends on building structures, interference, and installation conditions.
• Battery life depends on usage frequency, wireless signal quality, and ambient temperature.
