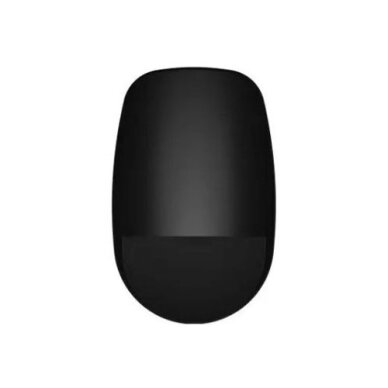

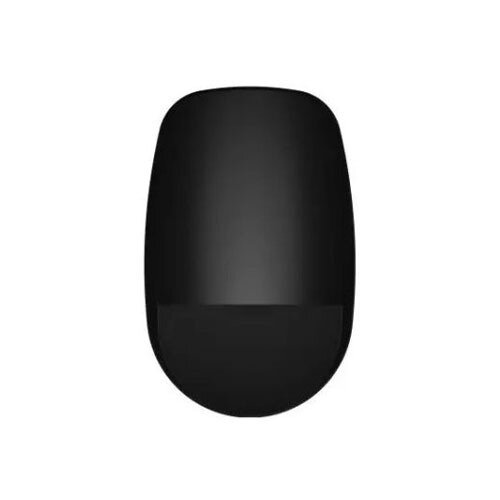

DS-PDP15P-EG2-WE AX PRO, Wireless Motion Sensor, Black, Hikvision

Hikvision DS-PDP15P-EG2-WE is a wireless PIR motion detector designed for the Hikvision AX PRO security system. It provides a detection range of up to 15 m, ignores pets weighing up to 30 kg, and uses advanced digital signal processing for reliable indoor motion detection.

Main features:

• Passive infrared motion detection
• Detection range: up to 15 m
• Detection angle: 85.9 degrees
• 52 detection zones
• Detectable movement speed: 0.3 to 2 m/s
• Pet immunity up to 30 kg
• Automatic, high, and pet sensitivity modes
• SEC technology with advanced digital signal processing and 3D optics
• Digital temperature compensation
• Creep zone protection for movement directly below the detector
• Sealed optics for protection against dust and insects
• Front and rear tamper protection
• 868 MHz two-way Tri-X wireless communication
• AES-128 wireless communication encryption
• Wireless transmission range up to 1.6 km in open space
• Frequency hopping for protection against wireless interference
• Remote configuration through the app
• Power supply: 1 replaceable CR123A battery
• Battery life up to 5 years in standby mode
• Recommended mounting height: 1.8 to 2.4 m
• Dimensions: 65.5 × 103 × 48.5 mm
• Weight: approximately 128 g

Notes:

• The detector is designed for wall mounting and indoor use.
• A compatible Hikvision AX PRO control panel is required.
• The actual wireless range depends on walls, building structures, interference, and installation conditions.
• Battery life depends on usage frequency, wireless signal quality, and environmental conditions.
