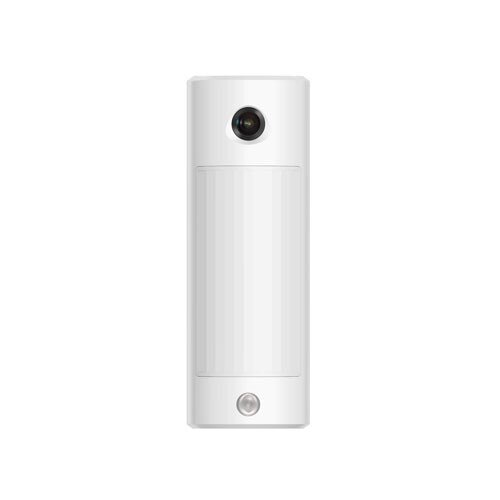

DS-PDPC18-HM-WE AX PRO, Wireless outdoor motion detector, Hikvision

Hikvision DS-PDPC18-HM-WE is a wireless outdoor motion detector with dual PIR sensors and a built-in camera for visual alarm verification. It is designed for the Hikvision AX PRO system, supports pet immunity, and is suitable for demanding outdoor environments.

Main features:

• Dual PIR technology with visual alarm verification
• Detection range: up to 18 m
• Detection angle: 90°
• 118 detection zones
• Pet immunity up to 24 kg
• Built-in camera for JPEG image transmission
• Image resolution: 320 × 240 with 3 images, or 160 × 120 with 5 images
• IR illumination for visual verification in darkness
• Polarizing IR lens for more uniform night illumination
• Day and night modes with color and black-and-white imaging
• Anti-masking protection
• 868 MHz two-way CAM-X wireless communication
• AES-128 wireless communication encryption
• Wireless transmission range up to 800 m in open space
• Power supply: 4 replaceable CR123A batteries
• Battery life up to 3 years
• Protection rating: IP65
• Operating temperature: -25 °C to 60 °C

Notes:

• A compatible Hikvision AX PRO control panel is required.
• The detector supports low mounting at 0.8–1.2 m or high mounting at 2.5–3 m.
• The actual wireless range depends on building structures, interference, and installation conditions.
• Battery life depends on activation frequency, image transmission, temperature, and wireless signal quality.
