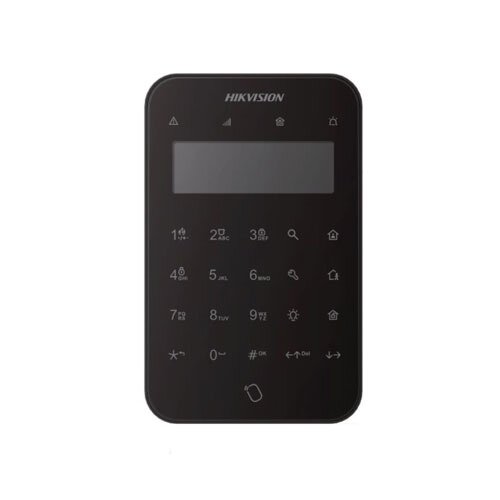

DS-PK1-LT-WE AX PRO, Wireless keypad, Black, Hikvision

Hikvision DS-PK1-LT-WE is a wireless LCD keypad designed for controlling the Hikvision AX PRO security system. It features touch-sensitive keys, a built-in tag reader, and supports arming, disarming, output control, and one-touch emergency alarm activation.

Main features:

• LCD screen for displaying system status and information
• LED indicators for fault, communication, armed, disarmed, and alarm status
• Full-touch keys with LED backlight
• Numeric keys from 0 to 9
• Away and stay arming
• System disarming
• Alarm output control
• One-touch fire, panic, and medical alarm activation
• Built-in card and tag reader
• Built-in buzzer
• Front and rear tamper protection
• System configuration through the LCD screen
• Remote configuration through the app
• 868 MHz two-way Tri-X wireless communication
• 2GFSK wireless modulation
• Wireless transmission range up to 1200 m in open space
• Power supply: 4 replaceable CR123 batteries
• Battery life up to 2 years in standby mode
• Wall-mounted installation
• Dimensions: 174.63 × 109.62 × 25.25 mm
• Weight with batteries: approximately 348 g
• Operating temperature: -10 °C to 55 °C

Notes:

• A compatible Hikvision AX PRO control panel is required.
• The keypad is designed for indoor installation and use.
• The actual wireless range depends on walls, building structures, interference, and installation conditions.
• Battery life depends on usage frequency, screen activation, and wireless signal quality.
