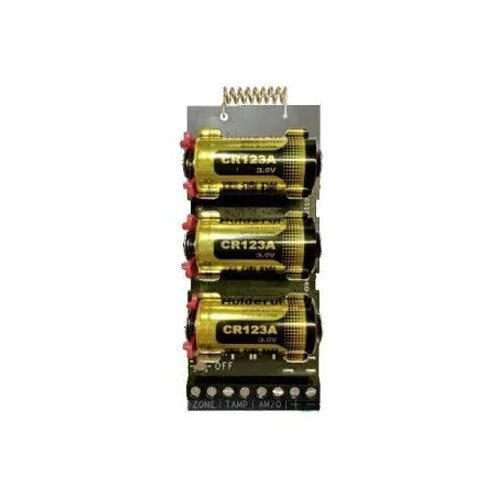

DS-PM1-I1-WE AX PRO, Single input transmitter, Hikvision

Hikvision DS-PM1-I1-WE is a wireless single-input transmitter designed to connect third-party wired detectors to the Hikvision AX PRO security system. Its compact design allows installation inside a wired detector housing, while zone and alarm parameters can be configured remotely.

Main features:

• Designed to integrate wired detectors with the Hikvision AX PRO system
• 1 programmable alarm input
• 1 tamper input
• 1 programmable PGM / alarm output
• 3.3 VDC output for powering an external detector
• Maximum 3.3 V output current: 10 mA
• Built-in accelerometer for device removal detection
• LED indicators for alarm, tamper, fault, and signal strength status
• 868 MHz two-way wireless communication
• 2GFSK wireless modulation
• Wireless transmission range up to 1700 m in open space
• Power supply: 3 replaceable CR123 batteries
• Battery life longer than 5 years when reporting up to 50 alarms per day
• Dimensions: 102 × 41 × 20 mm
• Weight: approximately 35 g without batteries and 90 g with batteries
• Operating temperature: -10 °C to 55 °C
• Operating humidity: 10 to 90 percent

Notes:

• The module is designed for installation inside a compatible wired detector housing.
• A compatible Hikvision AX PRO control panel is required.
• The 3.3 V output current must not exceed 10 mA, so the connected detector power requirement should be checked.
• The actual wireless range depends on walls, building structures, interference, and installation conditions.
