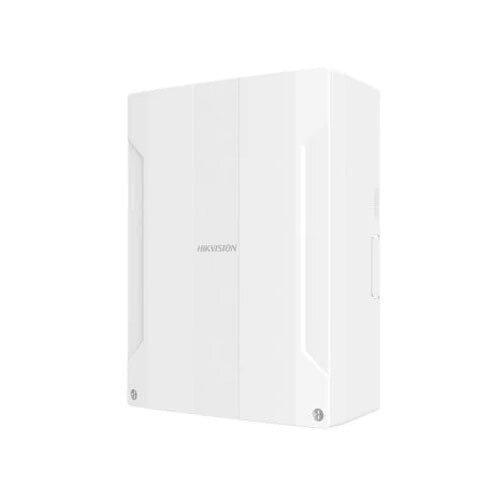

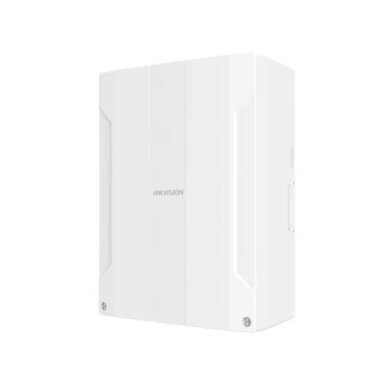

DS-PWA96-M2-WE AX PRO, Control panel, Hikvision

Hikvision DS-PWA96-M2-WE is an AX PRO wireless alarm control panel designed for residential and commercial security systems. It supports up to 96 wireless zones, visual alarm verification, and multiple communication paths for convenient remote control and reliable alarm transmission.

Main features:

• Up to 96 wireless zones or outputs
• Up to 32 security areas
• Supports PIR detectors with built-in cameras
• Visual alarm verification
• 868 MHz two-way Tri-X and Cam-X wireless communication
• AES-128 wireless communication encryption
• Frequency hopping for protection against wireless interference
• Ethernet, Wi-Fi, and 3G / 4G communication
• Dual SIM card slots
• Control via Hik-Connect and Hik-ProConnect applications
• Supports remote configuration and system maintenance
• Built-in loudspeaker and voice prompts
• Event log capacity up to 5000 records
• Supports SIA DC-09 and Contact ID alarm communication protocols
• Supports a 12 V, 7 Ah backup battery
• Backup operation up to 36 hours, depending on system load
• Dimensions: 261 × 199 × 86.4 mm
• Operating temperature: -10 °C to 55 °C

Notes:

• The backup battery is usually not included as standard.
• 3G / 4G communication requires an active SIM card and mobile operator service.
• The actual wireless range depends on building structures, interference, and installation conditions.
• Supported device quantities and functions may depend on the control panel firmware version.
