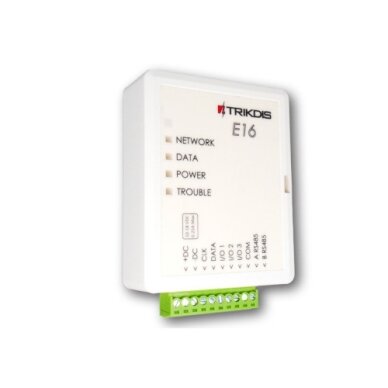

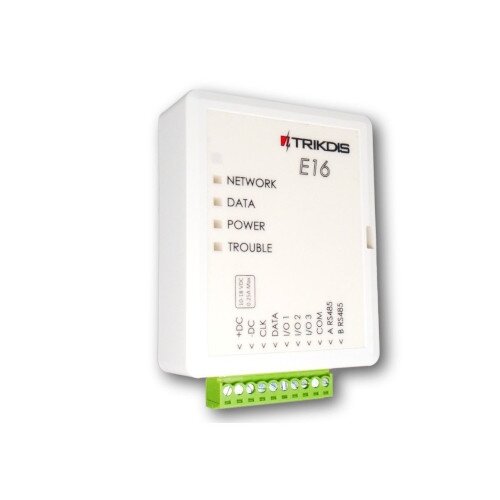

E16, Ethernet communicator, White, TRIKDIS

Professional Ethernet communicator designed to transmit security control panel events to a monitoring station and provide a stable wired connection with Protegus2 remote control capabilities.

• Direct connection to popular security control panels via serial or keypad BUS interface
• Event transmission to the monitoring station receiver via Ethernet connection
• Supported communication protocols: TRK, DC-09_2007, DC-09_2012, TL150
• Works with the Protegus2 app – users can receive notifications and control the system remotely
• 3 universal I/O terminals, configurable as inputs or outputs
• Input and output expansion using iO series expanders
• AES 128 message encryption
• Internal memory for up to 60 messages
• Connection supervision and event transmission to one or multiple receivers
• Power supply voltage: 10–18 V DC
• Current consumption: 100 mA in standby mode, up to 250 mA during data transmission
• Ethernet interface: IEEE802.3, 10 Base-T, RJ45 socket
• Configuration via TrikdisConfig software remotely or locally through USB Mini-B connection
• Operating temperature: -10 °C to +50 °C
• Dimensions: 88 × 62 × 26 mm
