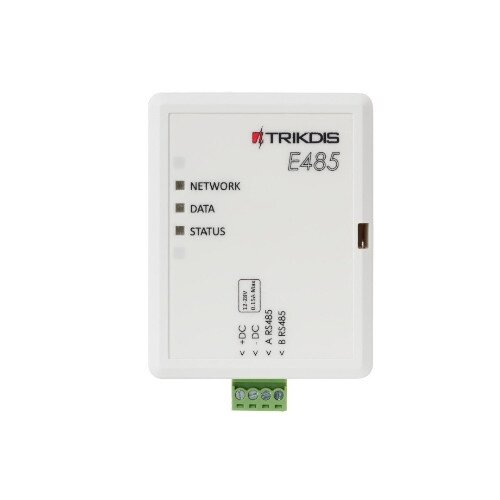

E485, Ethernet communication module, White, TRIKDIS

Ethernet communication module designed for Trikdis G16 and G16T communicators, ensuring event transmission and control command delivery via a wired internet connection.

• Compatible with Trikdis G16 and G16T communicators
• Designed for data and control command transmission via wired Ethernet network
• Allows event messages to be sent to a central monitoring station without using mobile internet
• If the wired internet connection is lost, messages can be transmitted via mobile internet
• Ethernet interface: IEEE 802.3, 10/100Base-TX, full-duplex, RJ45 connector
• Network settings: DHCP or manual network configuration
• Power supply: 9–28 V DC
• Current consumption: approx. 50 mA in standby mode, up to 150 mA during data transmission
• Compact module for professional security system communication expansion
• To use E485, a SIM card must be installed in the G16 or G16T communicator
• Recommended for use with a compatible communicator firmware version
