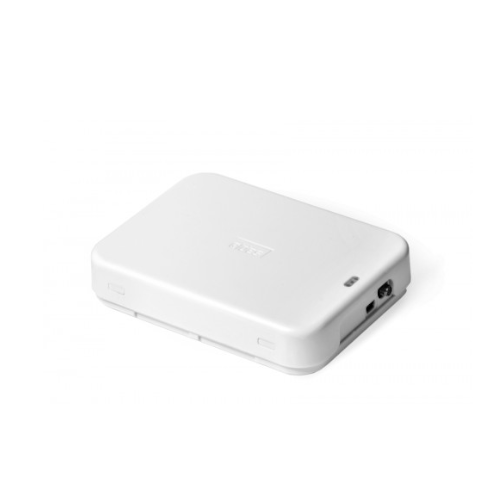

ESIM320 4G, Gate, road barrier controller, White, ELDES

4G gate and barrier controller designed for remote control of gates, road barriers, garage doors, or other electrical devices via phone call, mobile app, SMS, or WEB platform.

• Control:
  • Remote control of gates, road barriers, garage doors, and other devices
  • Control via free phone call, SMS, mobile app, or WEB platform
  • Automatic output control according to a configured schedule
  • Configurable output pulse duration
• Users and administration:
  • Up to 2000 users in the database
  • Up to 5 administrators for system configuration and management
  • User access can be limited by date, time, or number of calls
  • User access restrictions by weekday and time
  • Event log for up to 1000 records
• Communication:
  • 4G LTE communication with 3G and 2G fallback support
  • Automatic date and time synchronization
  • SMS notifications to administrators about input states or faults
• Inputs and outputs:
  • 3 programmable inputs for sensors or status signals
  • 2 relay outputs for gate automation or other device control
  • Maximum relay load: 24 V AC / 0.5 A or 24 V DC / 1 A
• Power and environment:
  • Power supply: 10–24 V AC or 10–24 V DC
  • Current consumption in standby mode: up to 50 mA without external devices
  • Operating temperature: -20 °C to +55 °C
  • Humidity: 0–90% RH, non-condensing
  • Dimensions: 87 × 107 × 29 mm
