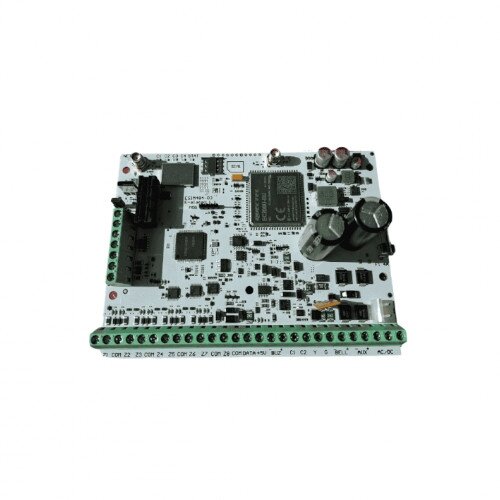

ESIM484, GSM control panel, Green, ELDES

ELDES ESIM484 is a hybrid GSM/4G alarm control panel designed for professional protection of residential and commercial premises. It supports wired and wireless devices, remote control, and reliable alarm event transmission.

• Communication and control: integrated GSM/4G communicator with LTE-FDD, LTE-TDD, and GSM frequency support
• SIM card: Nano-SIM
• Wired zones: 10 onboard zones, expandable up to 20 zones in ATZ mode
• Expansion: zone expansion available using EPGM1 modules
• Wireless zones: supports up to 32 wireless devices
• PGM outputs: 4 programmable wired outputs on board
• Partitions: up to 4 independent security partitions
• Remote control: system control via the ELDES Security app, SMS messages, or keypads
• Notifications: alarm and system status events can be sent to users or a security monitoring station
• Automation: suitable for controlling gates, lighting, heating, or other electrical devices via PGM outputs
• Power supply: 16–24 V AC, 50/60 Hz up to 3 A or 18–24 V DC up to 3 A
• Backup battery: recommended 12 V, 1.3–7 Ah battery
• Battery charging: up to 30 hours when using a 7 Ah battery
• Configuration: convenient setup via ELDES Utility software
• Application: suitable for private houses, cottages, apartments, garages, warehouses, and other protected premises
