  •   EX-IO8, Input/output expansion module, TRIKDIS

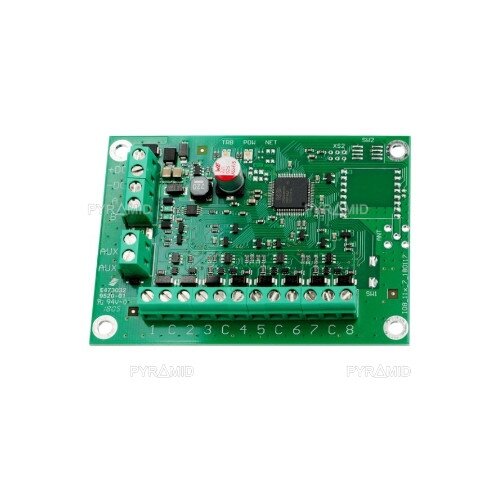

    EX-IO8, Input/output expansion module, TRIKDIS

    Code: 00963
    Inquire about this item
    4725 €
    In stock.
    1 pcs - Vilnius
    0 pcs - Kaunas
    0 pcs - Central Warehouse
    In stock: 1 pcs
    Add to cart
    • Input/output expander designed to increase the number of inputs and outputs in compatible TRIKDIS devices.
    • 8 universal contacts that can be configured as inputs or outputs.
    • Input types: NC, NO, EOL.
    • Output type: OC (open collector).
    • Power supply voltage: 10–18 V DC.
    • Current consumption: up to 20 mA.
    • AUX output current: up to 1 A.
    • Input voltage: up to the power supply voltage.
    • EOL resistance: 2.2 k? or 10 k?, depending on the main TRIKDIS device.
    • Output voltage: 0–18 V.
    • Output current: up to 100 mA.
    • Operating temperature: from -10 °C to +55 °C.
    • Dimensions: 65 × 90 × 15 mm.
    • Compatible with selected TRIKDIS devices and configured via TrikdisConfig software.
