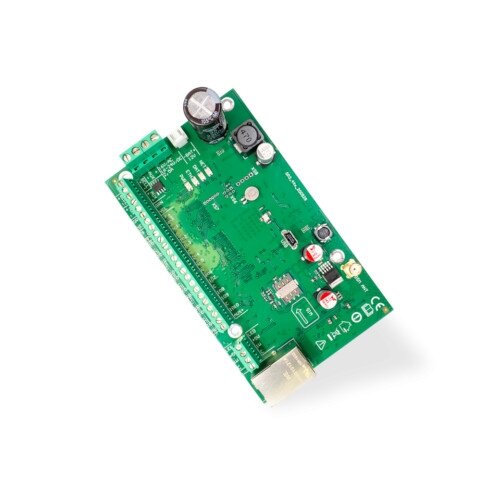

FLEXi SP3_44E LAN, security control panel, TRIKDIS

FLEXi SP3_44E LAN security control panel – a universal Trikdis security control panel with an integrated LAN module, designed for small and medium-sized security systems, remote control, and event reporting.

• Zones and areas: up to 32 security zones and up to 8 independent areas
• Inputs: 10 wired zones, up to 20 zones using ATZ mode
• Outputs: up to 16 controllable outputs for system automation
• Communication: integrated LAN module for event reporting and remote control
• Mobile connection: GSM/GPRS support with Nano SIM card
• Control: supports up to 8 keypads
• Power supply: 16 V DC or 16–24 V AC, 2.5 A
• Backup power: 12 V lead-acid battery, 4 Ah or 7 Ah
• AUX output: 12 V DC, up to 1 A for additional devices
• Siren output: BELL up to 1 A
• Enclosure: supplied with housing, transformer, and antennas
• Application: suitable for residential, commercial, and small to medium-sized security systems
