  •   G16, GSM EMEA communicator (4G), White, TRIKDIS

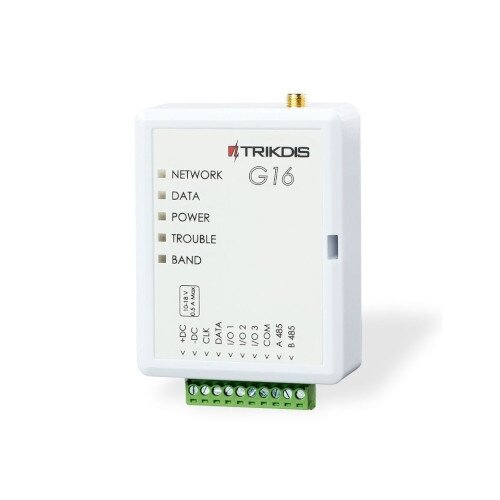

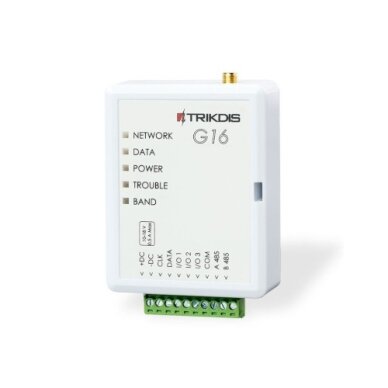

    G16, GSM EMEA communicator (4G), White, TRIKDIS

    Code: 02388
    Inquire about this item
    18572 €
    In stock.
    10+ pcs - Vilnius
    0 pcs - Kaunas
    0 pcs - Central Warehouse
    In stock: 10+ pcs
    Add to cart
    • 4G LTE communicator for connecting security control panels to a mobile network
    • Direct connection to supported DSC, Paradox, UTC Interlogix, Texecom, Honeywell, Crow, Pyronix, and Inner Range control panel buses
    • Event transmission to a central monitoring station via TRK, SIA DC-09, and SUR-GARD protocols
    • Works with the Protegus app for real-time notifications, remote arming / disarming, and device control
    • Connection supervision with the receiver every 30 seconds or at a user-defined interval
    • Supports backup communication channel and parallel event reporting to two receivers
    • AES-128 data encryption for secure event transmission
    • 1 configurable input: NC, NO, NC/EOL, NO/EOL, NC/DEOL, or NO/DEOL
    • 2 OC-type outputs, up to 0.15 A / 30 V DC, for remote device control
    • Inputs and outputs can be expanded using iO series expanders
    • Configuration via TrikdisConfig software, remotely or locally through a USB Mini-B connection
    • Remote configuration via SMS and firmware updates supported
    • Power supply: 10–18 V DC
    • Current consumption: 60–100 mA in standby mode, up to 250 mA during data transmission
    • Operating temperature: -10 °C to +50 °C
    • Dimensions: 92 × 65 × 26 mm
    • Weight: 80 g
