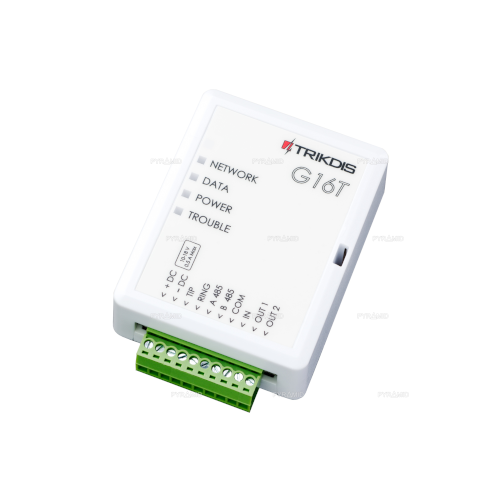

G16T, Communicator 4G EMEA, White, TRIKDIS

EN: Universal 4G LTE communicator designed to modernize alarm panels with a landline dialer and transmit events to a monitoring station and the Protegus app.

• 4G LTE communication for the EMEA region with 2G/3G backup channels
• TIP/RING interface for connection to the control panel’s landline dialer
• Supports Contact ID and SIA event formats
• Event reporting to TRIKDIS, SIA DC-09 and SUR-GARD receivers
• IP receiver connection supervision every 30 seconds or by user-defined interval
• AES 128 encryption for secure event transmission
• Protegus app integration: push notifications, system status and remote control
• Remote arm/disarm via PGM output or DTMF simulation
• 2 universal IN/OUT terminals configurable as inputs or OC-type outputs
• 1 controllable OC-type output up to 0.15 A, 30 V DC
• Expandable inputs and outputs using iO series modules
• Configuration via TrikdisConfig software locally through USB Mini-B or remotely
• Power supply: 10–18 V DC
• Current consumption: 60–100 mA on standby, up to 250 mA during data transmission
• Operating temperature: -10 °C to +50 °C
• Dimensions: 92 × 65 × 26 mm, weight approx. 80 g
