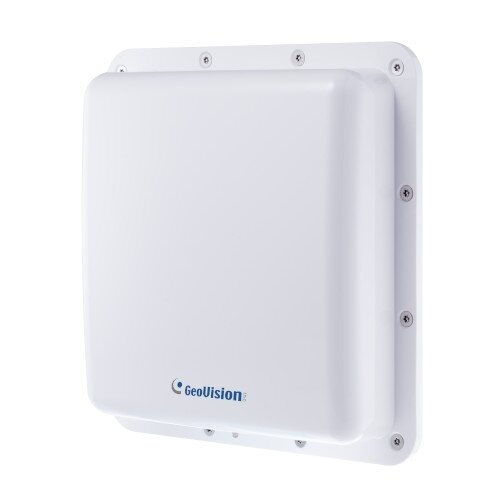

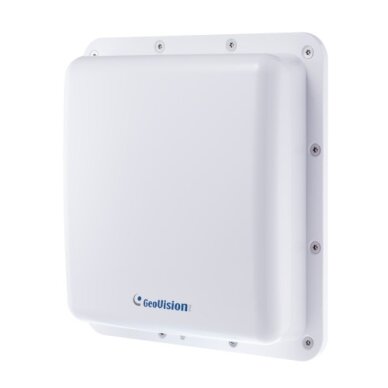

GV RU9003, Outdoor UHF RFID Reader Stationary

A UHF RFID reader compliant with ISO 18000-6C (EPC Gen2) standard, designed for long-range identification in parking lots.

Main Features:

• Built-in antenna and RF module
• Effective identification with specialized antenna pattern
• Compatible with access controllers via Wiegand 64 interface
• Maximum sensing (read) range: ~10 m (33 ft)
• Energy-saving design to reduce power consumption
• Support for external sensors and controllers
• Electronic tags compliant with EPC Gen2 (ISO 18000-6C)
• Emission power: 27.9 dBm
• Receiving sensitivity: –85 dBm
• Operating frequency: region dependent (e.g. 922-928 MHz, 902-928 MHz, or 865-868 MHz)
• Input voltage: 9–15 V DC
• Current: < 1 A maximum
• Ingress protection: IP56
• Operating temperature: –20 °C to +55 °C
• LED indicators: Red, Green
• Dimensions: 228 × 228 × 52.3 mm
• Weight: ~530 g
• Certifications: FCC, CE, (and others as required)

Notes:

• Using GV-ASManager software version 4.4.2 or newer is required
• The 10 m read range assumes reader and tag are at the same height, directly facing each other
• Metal objects or obstacles between reader and tag can reduce reading performance
• When multiple readers are placed near each other, spacing or frequency planning may be needed to avoid interference
• Models: RU9003-EPC (Wiegand 26-bit) and RU9003-TID (Wiegand 64-bit)
