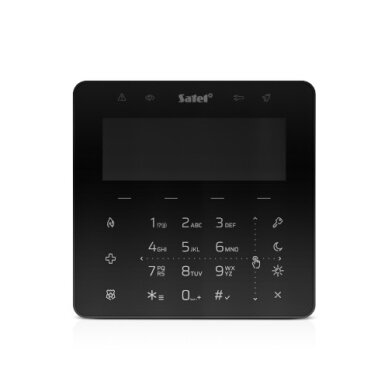

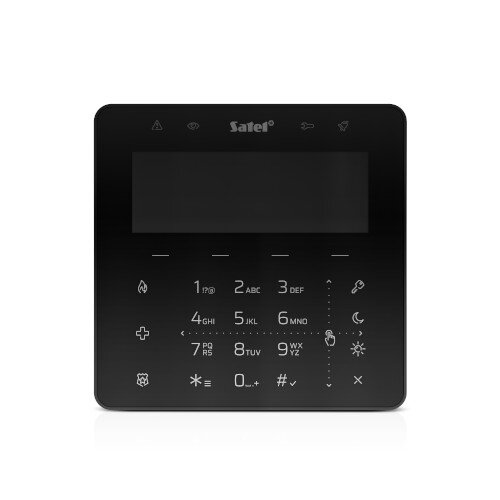

INT-KSG2R-B Keypad, Black, Satel

The INT-KSG2R keypad with touch keys is designed for operating and programming the INTEGRA and INTEGRA Plus series control panels, as well as the PERFECTA 64 M control panel.

It is a device intended for those who appreciate attractive design, while at the same time wish to operate the alarm system and building automation components in the manner known from traditional keypads.

• compatible with INTEGRA and INTEGRA Plus series control panels (INTEGRA Firmware 1.21 or higher) and PERFECTA 64 M control panel
• built-in MIFARE® proximity card reader (controlled only by INTEGRA and INTEGRA Plus control panels)

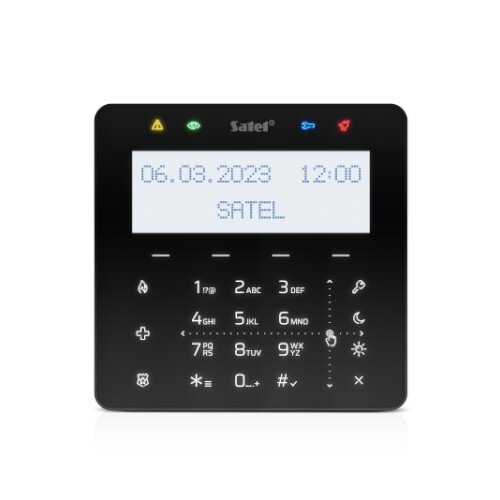

• large backlit graphic display
• configurable screensaver with optional display of the clock, date, status of system components (partitions, zones, outputs), temperatures
• backlit touch keypad:
  • 12 keys, marked according to the telephone standard, for data input
  • 4 function keys (INTEGRA: preset function selection; PERFECTA 64 M: arming in various modes/disarming)
  • 3 alarm-triggering keys (FIRE / AUX / PANIC)
  • 4 keys for activating macro-commands
  • support for swipe gestures (navigation across the menu)
• control of the system using macro-commands activating various function in the control panel (including building automation)
• LEDs for signalling the current status of the system
• built-in piezo transducer for acoustic signalling
• 2 programmable wired zones (supported by control panels INTEGRA and INTEGRA Plus only):
  • support for NO and NC type detectors, and roller shutter and vibration detectors
  • support for the EOL, 2EOL and 3EOL configurations (3EOL in the case of INTEGRA Plus)
  • programmable values of EOL resistors
• option to connect to RS-485 bus (software update over the bus)
• tamper contact responding to the enclosure opening or detaching from the wall
• available in white (INT-KSG2R-W) and black (INT-KSG2R-B)
