K10 V 10-zone LED keyboard, vertical

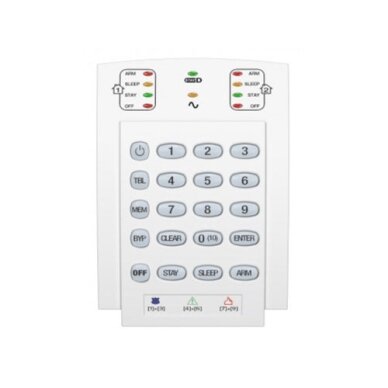

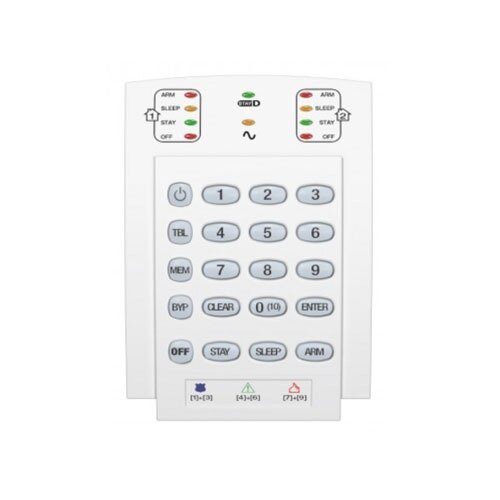

Paradox K10V 10-Zone LED Keypad, Vertical

Vertical 10-zone LED keypad designed for convenient Paradox Spectra SP and Magellan security system control, with quick zone and system status viewing through LED indicators.

Main features:

• 10-zone LED keypad
• Vertical housing design
• LED indicators for zones, partitions, alarms and system status
• Arming, disarming and partition control
• Supports Stay, Sleep, Away and Off control modes
• Single or two-partition control depending on panel configuration
• Backlit keys for convenient use in low light
• Audible indication and system messages for the user
• Programmable quick access keys
• Panic functions according to system programming
• 1 keypad zone input
• Connects to the control panel 4-wire communication bus
• Powered from the alarm control panel bus
• Compact white housing for wall-mounted installation
• Suitable for residential and commercial security systems

Notes:

• Compatible with Paradox Spectra SP and Magellan Series control panels
• Available functions depend on the control panel model, firmware version and system programming
