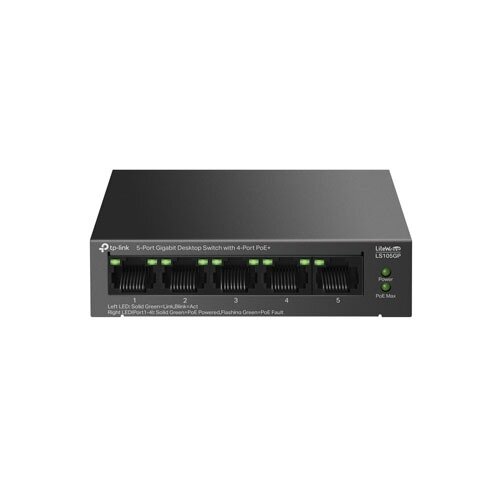

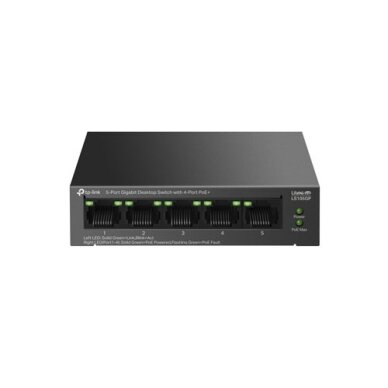

LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, TP-Link

Product Features

• Full Gigabit ports: 5 gigabit auto-negotiation ports deliver up to 10 Gbps switching capacity
• 65 W PoE budget: 4 × gigabit 802.3af/at-compliant PoE+ ports power IP cameras, access points, and IP phones via a single cable (up to 30 W per port)
• Up to 250 m PoE transmission: Extend Mode increases PoE distance to 250 m, ideal for large-area surveillance deployments
• PoE Auto Recovery: automatically reboots dropped or unresponsive PoE-powered devices
• Plug and Play: instant connectivity with no configuration required
• Silent operation: fanless design ensures quiet operation and reduced power consumption
• Reliable hardware design: durable metal casing with desktop and wall-mounting options
• Notes:
  • PoE budget is based on laboratory testing; actual PoE budget may vary
  • Ports under Extend Mode are downgraded to 10 Mbps; actual distance depends on cable quality

Product Specifications

Hardware Features

• Interface:
  • 5 × 10/100/1000 Mbps RJ45 ports (Ports 1–4 support 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network media:
  • 10BASE-T: UTP Cat 3/4/5 (max 100 m); EIA/TIA-568 100? STP
  • 100BASE-TX: UTP Cat 5/5e (max 100 m); EIA/TIA-568 100? STP
  • 1000BASE-T: UTP Cat 5/5e/6 or above (max 100 m); EIA/TIA-568 100? STP
• Fan quantity: Fanless
• Installation:
  • Desktop
  • Wall mounting
• Power supply: external power adapter (53.5 VDC / 1.31 A)
• PoE ports:
  • Standard: IEEE 802.3af/at compliant
  • PoE ports: Ports 1–4
  • Up to 30 W PoE output per port
  • Total PoE budget: 65 W
• Dimensions: 99.8 × 98 × 25 mm
• Max power consumption:
  • 4 W (no PD connected)
  • 74.46 W (with 65 W PD connected)
• Max heat dissipation:
  • 13.6 BTU/h (no PD)
  • 253.16 BTU/h (with PD)

Performance

• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 2K
• Jumbo frame: 16 KB

Software Features

• Advanced features:
  • Extend Mode button (Ports 1–2, up to 250 m PoE power and data transmission)
  • PoE Auto Recovery button (Ports 1–4)
  • Compatible with IEEE 802.3af/at compliant PDs
  • MAC address auto-learning and auto-aging
  • IEEE 802.3x flow control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Green Technology
• Transfer method: Store-and-Forward

Others

• Certifications: FCC, CE, RoHS
• Package contents:
  • LS105GP
  • Power adapter
  • Installation guide
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10–90% RH non-condensing
  • Storage humidity: 5–90% RH non-condensing
