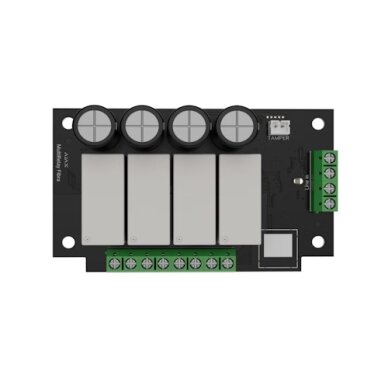

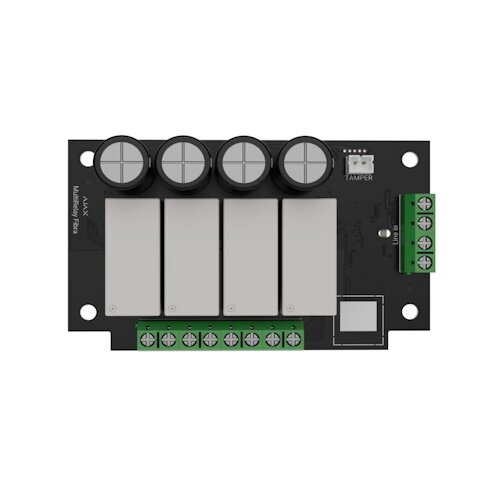

MultiRelay Fibra, Ajax

Ajax MultiRelay Fibra

Wired relay module with four independent channels, designed for controlling third-party devices and automation scenarios within the Ajax Fibra system.

Main Features:

• Four independent relay outputs (NO/NC) for flexible control
• Two-way wired communication via Fibra protocol, range up to 2000 m (U/UTP Cat.5)
• Supports automation scenarios based on alarms, schedules, or manual commands
• Control of low-voltage circuits and automation systems
• Power supply: 24 V DC via Fibra line
• Compact DIN rail mountable housing
• Overvoltage and overload protection
• Continuous monitoring and fault reporting via Ajax apps
• Operating temperature range: -10 °C to +40 °C

Notes:

• Designed for integration with Ajax hubs supporting Fibra protocol
• Installation must be carried out by certified Ajax partners
