PFT1300, PoE extender, Dahua

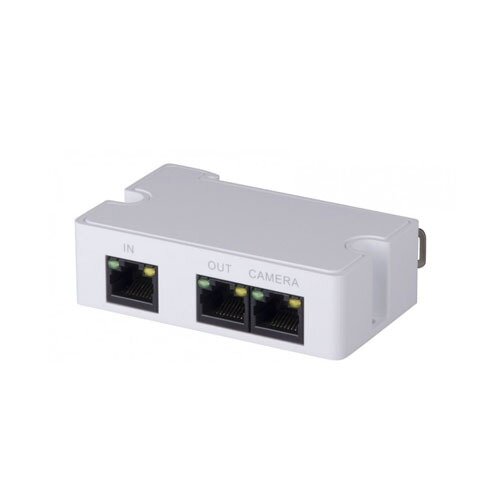

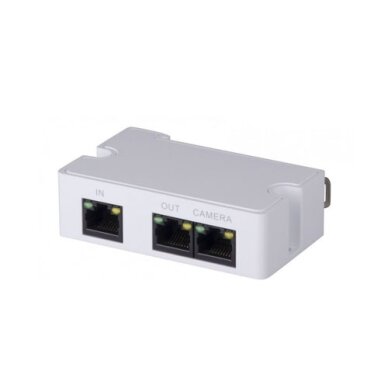

The Dahua PFT1300 is a compact 3-port PoE extender designed to extend network data and power transmission for IP cameras over Ethernet cabling. It helps increase installation distance without requiring an additional power supply near the camera, making it suitable for flexible CCTV deployments.

Main features:

• 3-port PoE extender with 1 PoE input and 2 PoE output ports.
• 1 × RJ45 10/100 Mbps PoE power input port.
• 1 × RJ45 10/100 Mbps output port for an IP camera.
• 1 × RJ45 10/100 Mbps output port for the next PoE extender.
• Supports IEEE 802.3af/at PoE standard for IP cameras.
• When used with Dahua PFT1200 High PoE midspan, up to 2 extenders can be cascaded.
• Maximum transmission distance up to 300 m with the correct cascade setup.
• Total connected camera power consumption up to 25 W.
• Low power consumption: up to 3 W.
• Operating temperature: -30 °C to +65 °C.
• Compact dimensions: 79 mm × 52 mm × 23 mm.
• Supports installation inside a junction box or on a DIN rail.

Notes:

• The maximum 300 m distance is achieved with a compatible Dahua PFT1200 power unit and the correct cascade connection.
• Total connected device power must not exceed 25 W.
• Check the camera’s PoE power requirement and cable quality before installation.
