  •   RF Lora 4F, Communication module, White, TRIKDIS

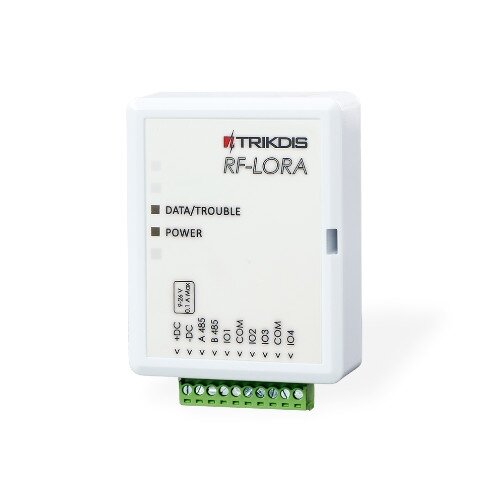

    RF Lora 4F, Communication module, White, TRIKDIS

    Code: 05918
    Inquire about this item
    5483 €
    Out of stock.
    Contact us
    In stock: 0 pcs

    • Wireless LoRa equipment receiver designed for use with TRIKDIS LoRa 4F wireless devices.
    • Operates in the 433.3–434.7 MHz frequency range using LoRa modulation.
    • Connects to the FLEXi SP3 control panel via the RS485 bus.
    • Provides secure, encrypted, two-way communication with wireless expansion modules.
    • Supports iO-LORA, iO-8-LORA and PB-LORA modules.
    • Up to 8 LoRa modules can be connected to one system.
    • Line-of-sight wireless range up to 5000 m.
    • Supplied with a standard antenna; a higher-gain antenna can be used for maximum range.
    • Power supply voltage: 9–26 V DC.
    • Current consumption: up to 50 mA in standby, up to 150 mA while transmitting.
    • Operating temperature: -20 °C to +50 °C.
    • Dimensions: 62 × 82 × 25 mm.
    • Weight: 80 g.
