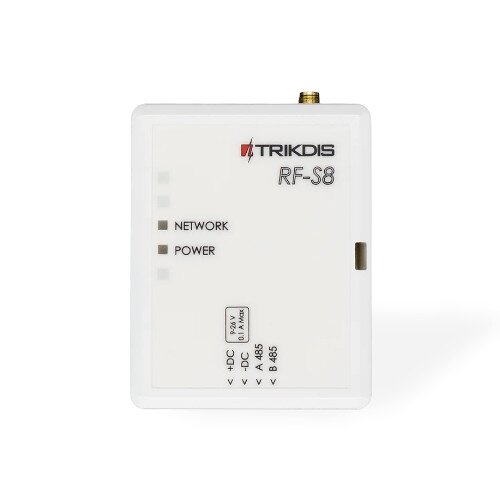

RF-S8 Wireless Transceiver, 12V DC, 868MHz, Trikdis

RF-S8 is a wireless receiver / transceiver designed to integrate S8 series wireless devices into the FLEXi SP3 security system. Operating at 868 MHz, it enables connection of wireless sensors, sirens and remote controls.

• Purpose: connects S8 series wireless devices to the FLEXi SP3 control panel
• Connection: connects to the control panel via RS485 bus
• Wireless frequency: 868 MHz
• Radio signal power: 25 mW
• Communication range: up to 500 m in open space
• Supported devices: S8 series motion detectors, magnetic contacts, smoke detectors, water leak sensors, sirens and remote controls
• Power supply: 9–26 V DC
• Current consumption: up to 50 mA in standby mode, up to 100 mA during short-term transmission
• Operating temperature: from -10 °C to +50 °C
• Ambient humidity: up to 80 % at +20 °C, non-condensing
• Dimensions: 92 × 62 × 25 mm
• Weight: 0.08 kg
