  •   SF PSU1202DIN

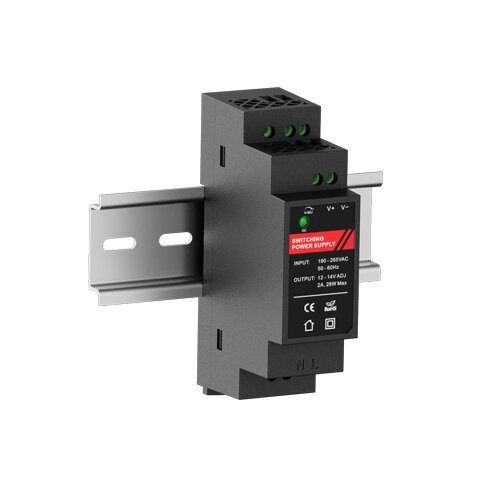

    SF PSU1202DIN

    Code: 06165
    Inquire about this item
    1240 € VAT excl.
    In stock.
    10+ pcs - Vilnius
    0 pcs - Kaunas
    0 pcs - Central Warehouse
    In stock: 10+ pcs
    Add to cart
    • INPUT
      • Voltage Range: 190–265 VAC
      • Frequency Range: 50–60 Hz
    • OUTPUT
      • Voltage (AC Mode): 12–14V plus minus 2 percent
      • Voltage (Battery Mode): same as battery voltage
      • Rated Current: 2A
      • Rated Power (Maximum): 28W (with maximum 250 mA charging current)
      • Efficiency (Typical): above 86 percent
      • Ripple and Noise: below 120 mVp-p
      • Output Channels: 1 channel
    • PROTECTION
      • Input: 2A / 250VAC fuse
      • Overload: hiccup mode, auto recovery
      • Over Voltage: hiccup mode, auto recovery
      • Short Circuit: hiccup mode, auto recovery
    • ENVIRONMENT
      • Working Temperature: minus 20 to plus 45 degrees Celsius
      • Storage Temperature: minus 30 to plus 80 degrees Celsius
      • Working Humidity: 20–80 percent RH
      • Storage Humidity: 10–90 percent RH
    • LED INDICATOR
      • Green On: AC supply active
    • SAFETY and EMC
      • EMC Standards: EN 55022:2010, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013
      • LVD Standards: EN 62368-1:2014-A11:2017
