  •   SF PSU2405MA

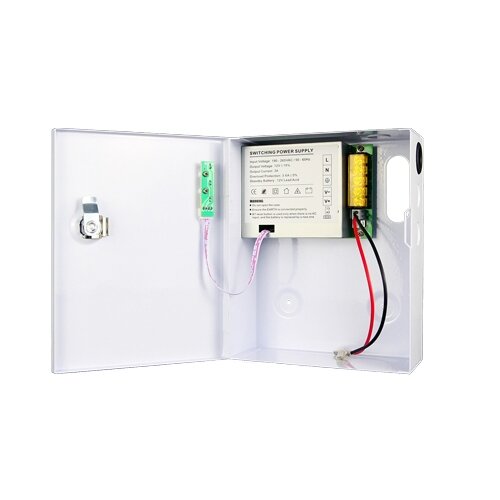

    SF PSU2405MA

    Code: 06164
    Inquire about this item
    5537 €
    In stock.
    5 pcs - Vilnius
    7 pcs - Kaunas
    0 pcs - Central Warehouse
    In stock: 10+ pcs
    Add to cart
    • INPUT
      • Voltage Range: 190–265 VAC
      • Frequency Range: 50–60 Hz
    • OUTPUT
      • Voltage (AC Mode): 27.6V plus minus 2 percent
      • Voltage (Battery Mode): same as battery voltage
      • Rated Current: 5A
      • Rated Power (Maximum): 152W (with 500 mA charging current)
      • Efficiency (Typical): above 85 percent
      • Ripple and Noise: below 240 mVp-p
      • Output Channels: 1 channel
    • CHARGING
      • Charging Voltage: 27.6V plus minus 2 percent
      • Charging Current: 500 mA maximum
      • Constant voltage mode; charging current decreases as battery voltage increases
    • PROTECTION
      • Input: 3.15A / 250VAC fuse
      • Overload: 6A plus minus 5 percent (hiccup mode, auto recovery)
      • Over Voltage: 30V plus minus 5 percent (hiccup mode, auto recovery)
      • Battery Low Voltage: 21V plus minus 2 percent (PSU shuts down until AC returns)
      • Short Circuit: hiccup mode, auto recovery
    • ENVIRONMENT
      • Working Temperature: minus 20 to plus 50 degrees Celsius
      • Storage Temperature: minus 30 to plus 80 degrees Celsius
      • Working Humidity: 20–80 percent RH
      • Storage Humidity: 10–90 percent RH
    • LED INDICATOR
      • Red On: AC power is on
      • Green On: DC output is on
      • Yellow On: battery fully charged
      • Yellow Flickering: battery charging
    • SAFETY and EMC
      • EMC Standards: EN 55022:2010, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013
      • LVD Standards: EN 62368-1:2014-A11:2017
    • DIMENSION
      • Metal Box: 295 × 195 × 90 mm — fits 2 pieces of 12V 4.5Ah batteries
