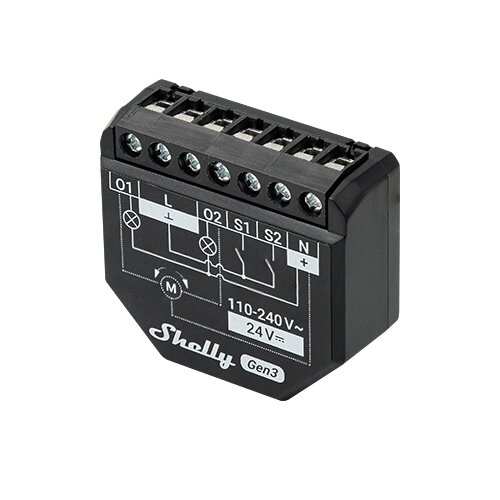

Shelly 2PM Gen3, 2channel/motor relay(Wi-Fi, bluetooth)

Shelly 2PM Gen 3 is a small-form-factor, dual-channel smart switch with integrated power metering and cover (roller) control functionality. It enables remote control of electric appliances and bi-directional AC motors, such as blinds, curtains, or awnings, via Wi-Fi or Bluetooth, with local or cloud-based automation.

Features

• Two relay channels on the same phase with independent power metering (10 A per channel, 16 A total, 18 A peak)
• Cover control mode with slat angle adjustment for blinds and shutters
• ESP-Shelly-C38F processor with 8 MB flash memory
• Functions as Wi-Fi extender and BLE gateway
• Advanced automation via scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, custom certs
• Virtual components for unified device control
• Supports Matter (on firmware ? 1.6.0), Alexa, Google Assistant, SmartThings, Home Assistant

Main Applications

• Remote control of two appliances or lights with energy monitoring
• Automated control of roller shutters, awnings, curtains, and venetian blinds with slat tilt adjustments
• Wi-Fi range extension and Bluetooth gateway capabilities inside wall boxes
• Energy tracking and smart scheduling for efficiency and convenience

Compatibility

• Works with Shelly Smart Control App
• Integrates with major smart home systems and Matter-compatible ecosystems
