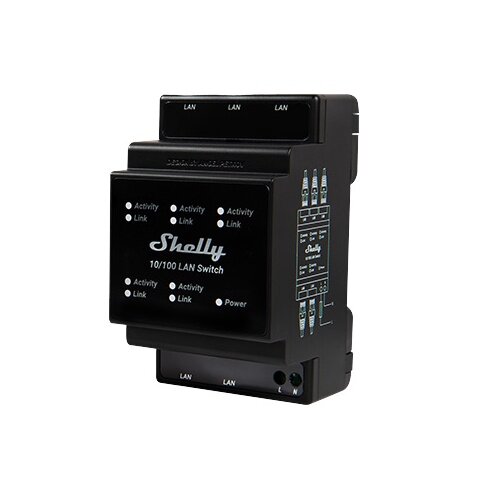

Shelly DIN LAN Switch 5 port

Shelly LAN Switch (DIN Rail, 5-port) is a compact, DIN rail-mountable Ethernet switch designed to power and connect up to five wired network devices directly from your breaker or control box.

Features

• Mounts to standard DIN rail—ideal for clean installation alongside Shelly Pro devices
• Includes 5 × RJ45 ports with 10/100 Mbps support
• Direct AC power input (110–230 V AC), no external power adapter needed
• Plug-and-play setup—quick network deployment
• LED indicators for power, link, and network activity status

Main Applications

• Establish stable wired connections for smart home devices like HVAC controllers, meters, or lighting systems
• Enhance network reliability in breaker boxes—especially for devices with poor Wi-Fi reception
• Reduce cable clutter by centralizing network infrastructure inside distribution panels

Connectivity & Interface

• 2-screw terminal inputs for live (L) and neutral (N) power
• Five RJ45 Ethernet ports (1 upstream, 4 downstream)
• Auto-negotiation: supports half/full duplex, flow control per IEEE 802.3
