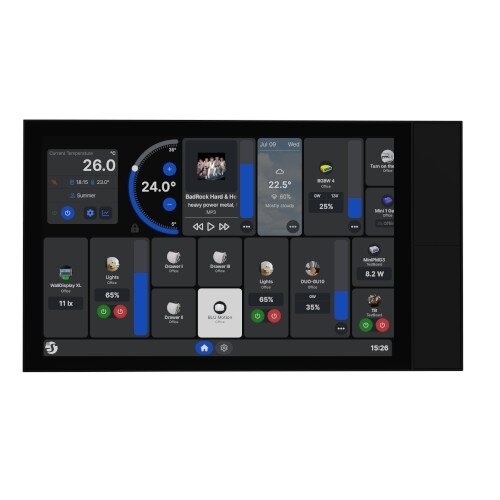

Shelly Wall Display XL Black

Shelly Wall Display XL – a large-format smart wall control panel with a 10.1" color touch display, built-in relay output, and four customizable buttons. Designed for centralized control of lighting, climate, automation scenes, and devices in residential or commercial spaces.

Features

• 10.1" color touch display (resolution 1280×800 px)
• Built-in 5 A relay for load switching
• Four customizable physical control zones
• Integrated temperature, humidity, light, and proximity sensors
• Wi-Fi 6 (2.4 GHz + 5 GHz) and Bluetooth 5.4 connectivity
• Dual 2 W speakers for media playback and audio alerts
• Automation, scenes, MQTT, Webhooks, and Shelly Smart Control integration
• Installs in a standard wall box (230 V AC supply)
• Dimensions: 155.8 × 272.5 × 38.3 mm

Primary Uses

• Room-level control of lighting, HVAC, and automation scenes
• Energy monitoring via connected Shelly PM devices
• Interactive customizable interface with quick-access buttons
• Ideal for both residential and commercial applications

Compatibility

• Fully compatible with Shelly Smart Control ecosystem
• Supports MQTT, Webhooks, Home Assistant, Matter, and open protocols
• Operates autonomously without requiring a central hub

• Datasheet
