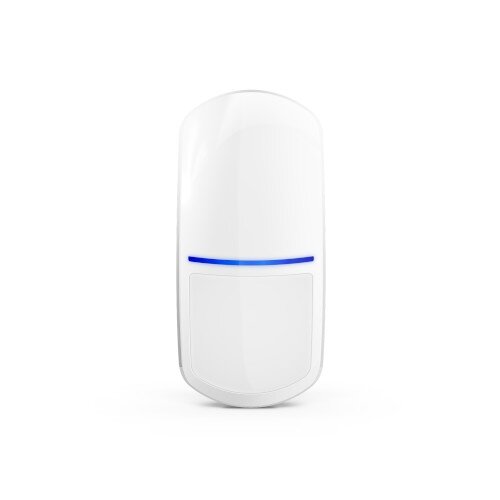

SLIM-DUAL-PRO IR and microwave sensor, Satel

SLIM-DUAL-PRO detects motion in the protected area.

• certificate of compliance with the EN 50131 requirements for Grade 3
• motion detection using two sensors: a passive infrared (PIR) sensor and a microwave (MW) sensor
• adjustable detection sensitivity of both sensors
• option to test the sensors separately
• digital motion detection algorithm
• digital temperature compensation
• digital filter of signals received by the microwave sensor to ensure immunity to false alarms caused by the power network and discharge lamps
• operating mode selection: basic or advanced
• option to enable/disable the creep zone protection
• wide-angle lens, designed specifically for SLIM LINE detectors
• option to replace the wide-angle lens with a curtain (CT-CL) or long-range (LR-CL) one
• active IR anti-masking, compliant with EN 50131-2-4 for Grade 3
• ability to configure detector operating parameters using the OPT-1 keyfob
• built-in end-of-line resistors (2EOL: 2 x 1,1 k? / 2 x 4,7 k? / 2 x 5,6 k?)
• LED indicator
• selectable color of LED indicator (7 colors available)
• LED indicator remote enable/disable
• configuration mode remote enable/disable
• supervision of motion detection and supply voltage circuit
• tamper protection against opening of enclosure and removal from mounting
• adjustable mounting holder (BRACKET D) included, provided with tamper switch
