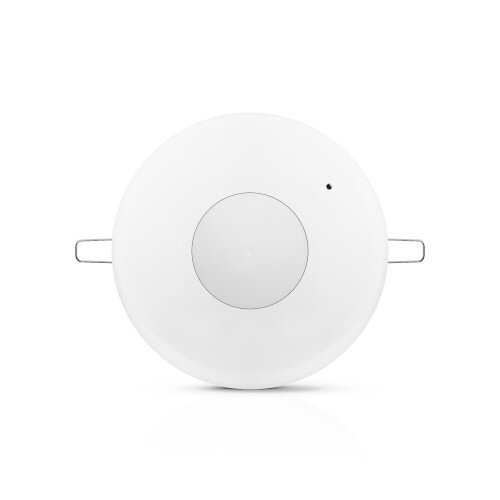

SLIM-R-DUAL Ceiling PIR+MW detector (recessed), Satel

SLIM-R-DUAL Ceiling Dual Technology Motion Detector

SLIM-R-DUAL is a recessed ceiling dual technology motion detector designed for indoor installation in suspended ceilings. It uses both passive infrared and microwave sensors to detect motion, providing reliable detection in protected indoor areas.

The detector reports an alarm when both the PIR sensor and microwave sensor detect motion within a time period shorter than 3 seconds. It features digital motion detection algorithms for both sensors, digital temperature compensation, adjustable sensitivity and tamper protection against opening the enclosure.

• Motion detection using PIR and microwave sensors
• Designed for recessed mounting in suspended ceilings
• Alarm triggered when both sensors detect motion within 3 seconds
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm for both sensors
• Digital temperature compensation
• Adjustable detection sensitivity for both sensors
• Separate testing capability for PIR and microwave sensors
• Digital microwave signal filter for false alarm immunity
• Built-in end-of-line resistors: 2 x 1.1 Kohms
• LED indicator with selectable colour
• Remote LED indicator enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• Tamper protection against opening the detector enclosure
• EN 50131 Grade 2 compliance
