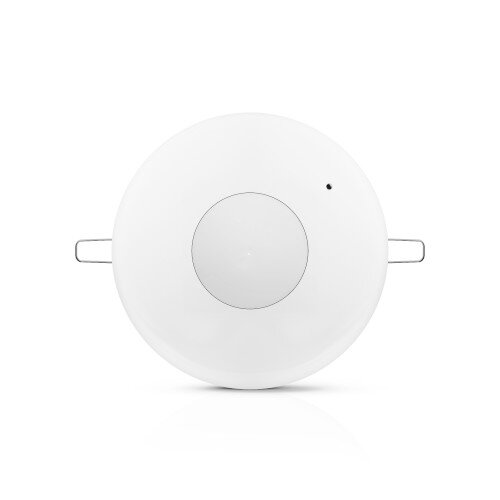

SLIM-R-PIR Ceiling PIR detector (recessed), Satel

SLIM-R-PIR Ceiling PIR Motion Detector

SLIM-R-PIR is a recessed ceiling PIR motion detector designed for indoor installation in suspended ceilings. It uses passive infrared technology to detect motion and is suitable for protecting indoor spaces with normal air humidity.

The detector features a digital motion detection algorithm, digital temperature compensation and adjustable detection sensitivity. It also includes built-in end-of-line resistors, supply voltage control and tamper protection against opening the enclosure.

• Passive infrared motion detection
• Designed for recessed mounting in suspended ceilings
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable detection sensitivity
• Built-in end-of-line resistors: 2 x 1.1 Kohms
• LED indicator with selectable alarm colour
• Remote LED indicator enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• Tamper protection against opening the detector enclosure
• EN 50131 Grade 2 compliance
