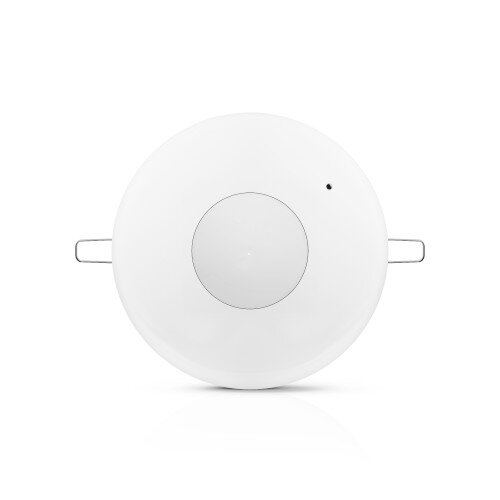

SLIM-R-PIR-LUNA Ceiling PIR detector with emergency light (recessed), Satel

SLIM-R-PIR-LUNA Ceiling PIR Motion Detector

SLIM-R-PIR-LUNA is a recessed ceiling PIR motion detector with a lighting feature. It is designed for indoor installation in suspended ceilings and uses passive infrared technology to detect motion.

The detector includes white LED lighting, which can be controlled remotely or activated by motion. It also features a digital motion detection algorithm, digital temperature compensation, adjustable sensitivity and tamper protection against opening the enclosure.

• Passive infrared motion detection
• Designed for recessed mounting in suspended ceilings
• Built-in white LED lighting feature
• Remote lighting control
• Motion-activated lighting
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable PIR sensitivity
• Remote switching between PIR sensitivity levels
• Configuration using detector buttons or OPT-1 keyfob
• Built-in end-of-line resistors: 2 x 1.1 Kohms, 2 x 4.7 Kohms or 2 x 5.6 Kohms
• LED indicator with selectable colour
• Remote LED indicator enable and disable
• Remote configuration mode enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• EN 50131 Grade 2 compliance
