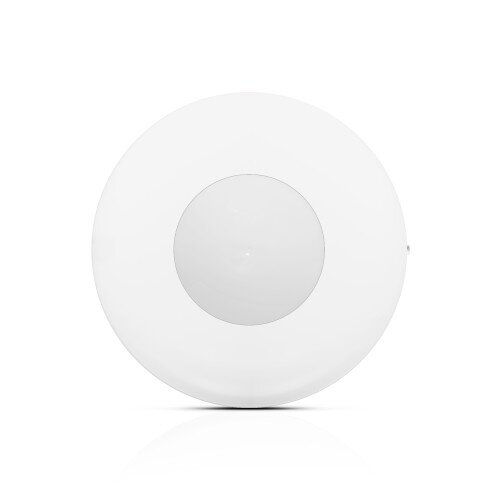

SLIM-S-DUAL-LUNA Ceiling PIR+MW detector with emergency light (surface), Satel

SLIM-S-DUAL-LUNA Ceiling Dual Technology Motion Detector

SLIM-S-DUAL-LUNA is a ceiling dual technology motion detector with integrated lighting functionality. It is designed for indoor surface mounting on the ceiling and uses both passive infrared and microwave sensors to detect motion.

The detector offers selectable operating modes, adjustable sensitivity for both sensors and built-in white LED lighting. It supports remote lighting control, motion-activated lighting and remote switching between detector working parameters.

• Motion detection using PIR and microwave sensors
• Designed for surface mounting on the ceiling
• Integrated white LED lighting feature
• Remote lighting control
• Motion-activated lighting
• Selectable operation modes: basic, advanced, PIR or MW
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm for PIR and MW sensors
• Digital temperature compensation
• Adjustable PIR and MW sensor sensitivity
• Separate testing capability for PIR and microwave sensors
• Digital microwave signal filter for false alarm immunity
• Remote switching between detector parameter sets
• Configuration using detector buttons or OPT-1 keyfob
• Built-in end-of-line resistors: 2 x 1.1 Kohms, 2 x 4.7 Kohms or 2 x 5.6 Kohms
• LED indicator with selectable colour
• Remote LED indicator enable and disable
• Remote configuration mode enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• Tamper protection against enclosure opening and removal from mounting surface
• EN 50131 Grade 2 compliance
