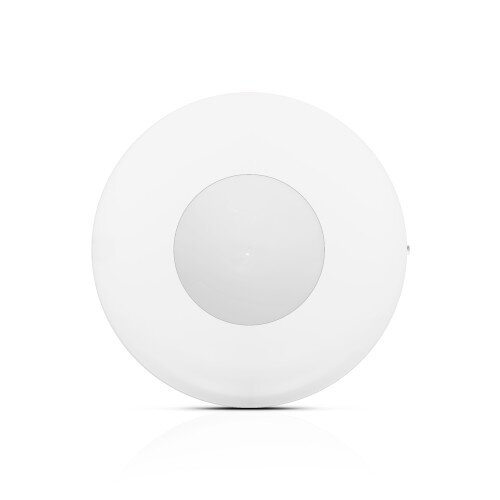

SLIM-S-DUAL-PRO Ceiling PIR+MW detector with antimasking (surface), Satel

SLIM-S-DUAL-PRO Ceiling Dual Technology Motion Detector

SLIM-S-DUAL-PRO is a ceiling dual technology motion detector with active anti-mask protection. It is designed for indoor surface mounting on the ceiling and uses both passive infrared and microwave sensors to detect motion.

The detector meets EN 50131-2-4 Grade 3 requirements. It features selectable basic or advanced operation mode, adjustable sensitivity for both sensors, digital temperature compensation, microwave signal filtering and active IR anti-mask protection against attempts to cover the detector or paint over the lens.

• Motion detection using PIR and microwave sensors
• Designed for surface mounting on the ceiling
• Selectable operation modes: basic or advanced
• Active IR anti-mask compliant with EN 50131-2-4 Grade 3 requirements
• Detection of attempts to cover the detector or paint over the lens
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm for PIR and MW sensors
• Digital temperature compensation
• Adjustable PIR and MW sensor sensitivity
• Separate testing capability for PIR and microwave sensors
• Digital microwave signal filter for false alarm immunity
• Configurable anti-mask delay
• Selectable masking indication signalling
• Configuration using detector buttons or OPT-1 keyfob
• Built-in end-of-line resistors: 2 x 1.1 Kohms, 2 x 4.7 Kohms or 2 x 5.6 Kohms
• LED indicator with selectable colour
• Remote LED indicator enable and disable
• Remote configuration mode enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• Tamper protection against enclosure opening and removal from mounting surface
• EN 50131 Grade 3 compliance
