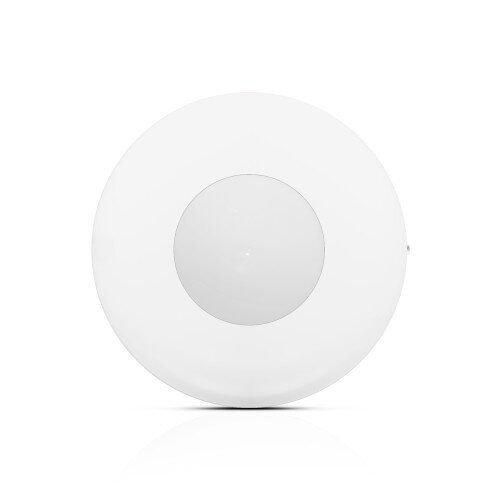

SLIM-S-PIR Ceiling PIR detector (surface), Satel

SLIM-S-PIR Ceiling PIR Motion Detector

SLIM-S-PIR is a ceiling PIR motion detector designed for surface mounting. It is intended for indoor installation and uses passive infrared technology to detect motion in protected areas.

The detector features a digital motion detection algorithm, digital temperature compensation and adjustable detection sensitivity. It also includes built-in end-of-line resistors, supply voltage control and tamper protection against enclosure opening and removal from the mounting surface.

• Passive infrared motion detection
• Designed for surface mounting on the ceiling
• Maximum coverage area: diameter 6 m and 28 square meters at 2.4 m mounting height
• Maximum coverage area: diameter 10 m and 79 square meters at 3.5 m mounting height
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable detection sensitivity
• Built-in end-of-line resistors: 2 x 1.1 Kohms
• LED indicator with selectable alarm colour
• Remote LED indicator enable and disable
• Motion detection system supervision
• Supply voltage control
• Powered by 12 VDC
• Tamper protection against enclosure opening and removal from mounting surface
• EN 50131 Grade 2 compliance
