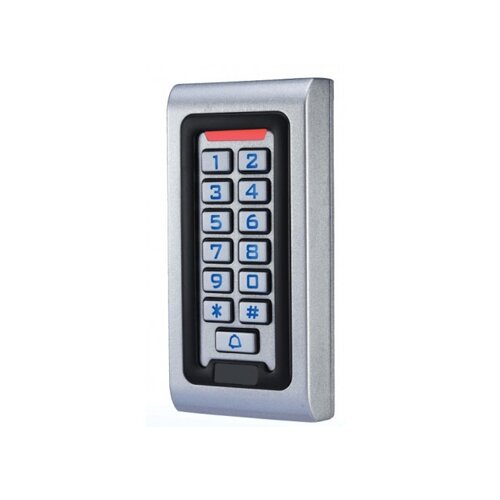

SSC S125K IP68 Keypad access control with WiFi

Waterproof Access Control Keypad with Tuya APP

Durable waterproof access control keypad with card, code, and Tuya APP access support, designed for secure door entry in residential, commercial, and outdoor installations.

Main Features:

• Waterproof design conforming to IP68 for reliable outdoor use
• Strong zinc alloy electroplated anti-vandal housing
• Supports multiple access methods: card, code, and Tuya APP
• Can be used as a standalone keypad
• User capacity up to 2000 users
• Backlit keys for convenient operation in low-light environments
• Wiegand 26 input for connection to an external reader
• Wiegand 26 output for connection to an access controller
• Adjustable door relay output time from 0 to 99 seconds
• Supports relay toggle mode, pure reader mode, and standalone access control mode
• Very low power consumption with idle current of 25±5 mA
• Data backup function for improved reliability
• Built-in buzzer with red, yellow, and green LED status indicators
• Easy to install and program

Specifications:

• Operating voltage: DC 12 V ±10%
• Card reading distance: 3–6 cm
• Active current: <60 mA
• Lock output load: max. 3 A
• Alarm output load: max. 20 A
• Operating temperature: ?45 °C to +60 °C
• Operating humidity: 10%–90% RH
• Waterproof rating: IP68
• Adjustable alarm time: 0–3 minutes
• Wiegand interface: Wiegand 26 bit
• Wiring connections: electric lock, exit button, external alarm, external reader

Notes:

• Suitable for electric lock, exit button, external alarm, and external reader connection
• Designed for standalone or integrated access control system use
