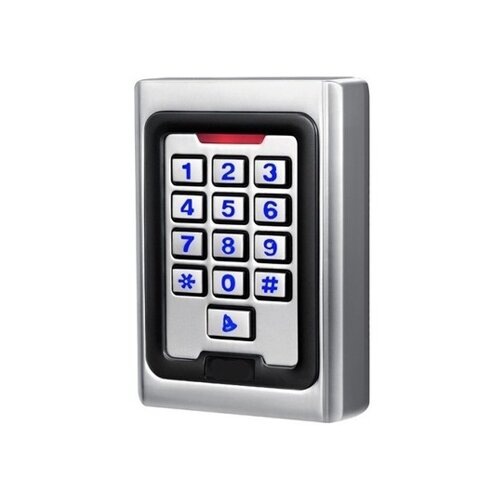

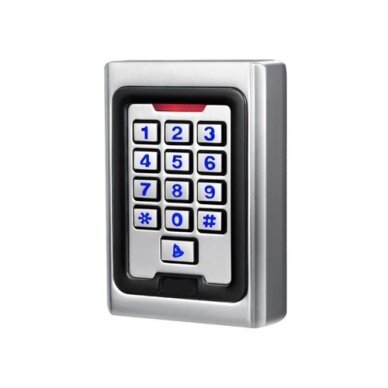

SSC S125K2 IP68, Standalone reader with keypad IP68

Waterproof Access Control Keypad with Card and PIN Support

Durable waterproof access control keypad with card, PIN, and Card + PIN access support, designed for secure door entry in residential, commercial, and outdoor installations.

Main Features:

• Waterproof design conforming to IP68 for reliable outdoor use
• Strong zinc alloy electroplated anti-vandal housing
• Full programming directly from the keypad
• Supports up to 2000 users
• Multiple access methods: card, PIN, or Card + PIN
• Can be used as a standalone keypad
• Backlit keys for convenient operation in low-light conditions
• Wiegand 26 input for connection to an external reader
• Wiegand 26 output for connection to an access controller
• Adjustable door relay output time from 0 to 99 seconds
• Very low power consumption with idle current of 25±5 mA
• Fast operating speed of less than 20 ms with 2000 users
• Lock output current short-circuit protection
• Built-in buzzer with red, yellow, and green LED status indicators
• Easy to install and program

Specifications:

• Operating voltage: DC 12 V ±10%
• User capacity: 2000
• Card reading distance: 3–6 cm
• Active current: <60 mA
• Idle current: 25±5 mA
• Lock output load: max. 3 A
• Alarm output load: max. 20 A
• Operating temperature: ?45 °C to +60 °C
• Operating humidity: 10%–90% RH
• Waterproof rating: IP68
• Adjustable door relay time: 0–99 seconds
• Adjustable alarm time: 0–3 minutes
• Wiegand interface: Wiegand 26 bit
• Wiring connections: electric lock, exit button, external alarm, external reader

Notes:

• Suitable for standalone access control or integration with Wiegand-compatible controllers
• Can be connected to an electric lock, exit button, external alarm, and external reader
