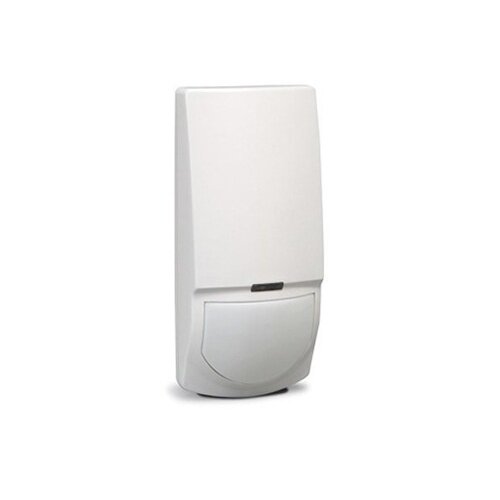

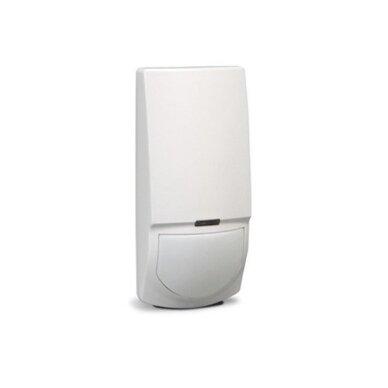

SWAN 2000AM

Small description: The SWAN 2000 is a wired dual-technology motion detector combining a quad PIR sensor and microwave Doppler sensor, with added anti-mask functionality and pet immunity up to 25kg.

Main features

• Detection method: Quad-element PIR + microwave Doppler in a logic AND configuration (both sensors must trigger).
• Anti-mask protection: detects attempts to block or mask the detector from around 0.8 m and closer.
• Pet immunity: up to 25kg (factory setting).
• Installation height calibration free: Effective when installed at 1.8–2.4 m wall height.
• Adjustable sensitivity: Separate potentiometers for PIR and MW; DIP switches for pet immunity and pulse count.
• Environmental & temperature compensation: Bi-directional temperature compensation ensures stable performance across temperature changes.

Compatibility

• Supply voltage: 8.2–16VDC.
• Alarm output: N.C. 28VDC 0.1A with series protection resistor (~10 ?).
• Tamper switch: N.C. 28VDC 0.1A; opens when cover removed.

Notes

• Warm-up period: ~60 s after power-up.
• Alarm period: ~2 s ±1 s.
• Current draw: Standby ~16.5 mA; active ~25.5 mA.
• Operating temperature: -10°C to +55°C.
• Dimensions / Weight: ~123×62×38mm; ~120g.
• Grade: EN50131 Grade2 (depending on version) and anti-mask feature.
