TL EAP211-BRIDGE KIT Omada 5 GHz 867 Mbps wireless bridge for indoor and outdoor use, TP-Link

Product Features

• 802.11ac provides up to 867 Mbps on the 5 GHz wireless data rate
• Ideal for long-range wireless transmission up to 1 km
• Auto-pairing and agile LEDs for efficient deployment
• 3 × Gigabit Ethernet ports for more high-speed IP camera connections
• Supports Omada SDN for remote and centralized management
• IP65 weatherproof enclosure and 6 kV lightning protection for all-weather use
• Supports Passive PoE for flexible deployment (adapter included)

Product Specifications

Hardware Features

• Interface: 3 × Gigabit Ethernet ports
• Button: Reset
• Power supply: 12 V DC / 24 V Passive PoE (Passive PoE adapter included)
• Power consumption: 11.5 W
• Dimensions: 79 × 60 × 224 mm
• Antenna type: Internal 2×2 dual-polarized directional MIMO antennas
  • 5 GHz: 7.0 dBi
  • Beamwidth: Horizontal 70°, Vertical 70°
• Weatherproof enclosure: IP65
• Mounting: Pole mounting (accessories included)

Wireless Features

• Coverage / transmission distance: up to 1000 m (3280 ft)
• Wireless standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal rate: 5 GHz – up to 867 Mbps

Wireless Functions

• Mesh
• MU-MIMO: 5G 2×2 MU-MIMO DL
• Load Balance
• Seamless Roaming (802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs: up to 8
• Wireless statistics
• Wireless schedule and reboot schedule
• RADIUS accounting
• MAC authentication
• Static IP / Dynamic IP

Wireless Security

• VLAN
• Access control
• Rogue AP detection
• Captive Portal authentication
• Maximum MAC filter entries: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power

• CE:
  • <23 dBm (5 GHz, band 1/2, EIRP)
  • <30 dBm (5 GHz, band 3, EIRP)
• FCC:
  • <22 dBm (5 GHz, band 1/4)

Management

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized management:
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud access: Yes (requires OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
• LED ON/OFF control: Yes
• Management MAC access control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based management: Yes

Others

• Certifications: CE, FCC, RoHS

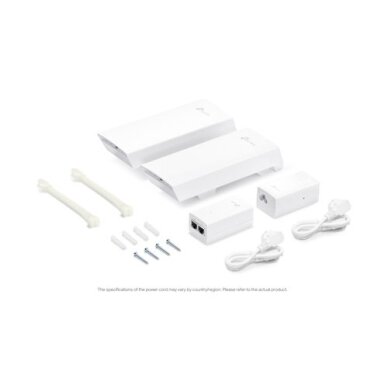

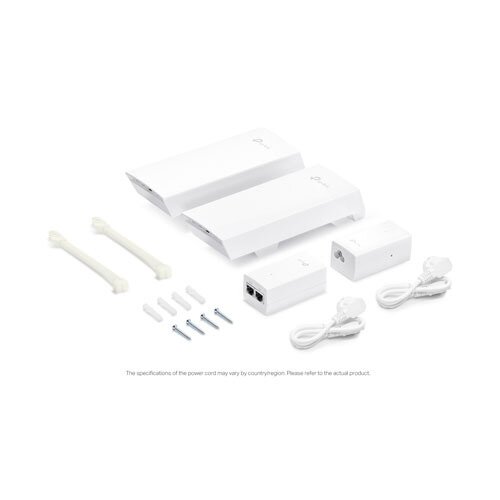

• Package contents:
  • EAP211-Bridge KIT
  • Passive PoE Adapter
  • Power Cord
  • Installation Guide
  • Mounting Kit
• Environment:
  • Operating temperature: ?40 °C–70 °C (?40 °F–158 °F)
  • Storage temperature: ?40 °C–70 °C (?40 °F–158 °F)
  • Operating humidity: 10%–90% non-condensing
  • Storage humidity: 5%–90% non-condensing
