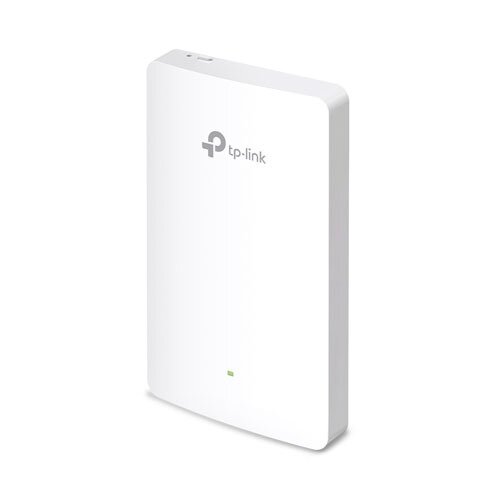

TL EAP615-WALL AX1800 Wall-Mounted WiFi 6 Access Point, TP-Link

Product Features

• Superior Wi-Fi 6 speeds: 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) = up to 1775 Mbps
• High-performance connectivity: higher efficiency and lower latency
• Four Gigabit ports: 1 × uplink + 3 × downlink, with one downlink supporting PoE pass-through (PoE OUT) to power a wired device
• Centralized management: integrates into Omada SDN for cloud access and remote management
• Secure guest network: multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and strong wireless security
• Easy installation and PoE support: fits 86 mm & EU & US standard junction boxes and supports 802.3af/at PoE

Product Specifications

Hardware Features

• Interfaces:
  • Uplink: 1 × 10/100/1000 Mbps Ethernet port
  • Downlink: 3 × 10/100/1000 Mbps Ethernet ports
    • One downlink port supports PoE OUT (PoE pass-through)
    • PoE OUT requires 802.3at PoE+ input
    • Max PoE pass-through output: 13 W (EU) or 12 W (US), based on lab testing
• Physical security lock: Yes
• Button: Reset
• Power supply: 802.3af/at PoE (not included)
• Power consumption:
  • EU: 10 W (802.3at PoE, PoE Out off)
  • US: 11.5 W (802.3at PoE, PoE Out off)
• Dimensions: 143 × 86 × 20 mm
• Antennas: 2 dual-band antennas
  • 2.4 GHz: 2 × 3 dBi
  • 5 GHz: 2 × 4 dBi
• Mounting: Wall Plate mounting

Wireless Features

• Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequencies: 2.4 GHz and 5 GHz
• Signal rate:
  • 5 GHz: up to 1201 Mbps
  • 2.4 GHz: up to 574 Mbps

Wireless Functions

• 16 SSIDs (up to 8 SSIDs per band)
• Enable/Disable wireless radio
• Automatic channel assignment
• Transmit power control (adjust in dBm)
• QoS (WMM)
• Seamless Roaming
• Beamforming, MU-MIMO
• Rate Limit
• Load Balance, Airtime Fairness, Band Steering
• Reboot schedule and wireless schedule
• RADIUS accounting, MAC authentication
• Wireless statistics
• Static IP / Dynamic IP

Wireless Security

• Captive Portal authentication
• Access control
• Wireless MAC address filtering
• Wireless client isolation
• VLAN
• Rogue AP detection
• 802.1X support
• WPA/WPA2/WPA3 Personal & Enterprise

Transmit Power

• CE:
  • <20 dBm (2.4 GHz, EIRP)
  • <23 dBm (5 GHz, EIRP)
• FCC:
  • <21 dBm (2.4 GHz)
  • <21 dBm (5 GHz)

Management

• Omada App: Yes
• Centralized management:
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud access: Yes (through OC300, OC200, or Omada Software Controller)
• Email alerts: Yes
• LED on/off control: Yes
• Management MAC access control: Yes
• SNMP: v1, v2c, v3
• System logging: Local/Remote Syslog
• SSH: Yes
• Web-based management: HTTP/HTTPS
• L3 management: Yes
• Multi-site management: Yes
• Management VLAN: Yes

Others

• Certifications: CE, FCC, RoHS
• Package contents:
  • AX1800 Wall Plate Wi-Fi 6 Access Point EAP615-Wall
  • Installation Guide
  • Mounting Kits
• Note: Power supply is not included
• System requirements: Microsoft Windows XP, Vista, 7, 8, 10
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10–90% RH non-condensing
  • Storage humidity: 5–90% RH non-condensing
