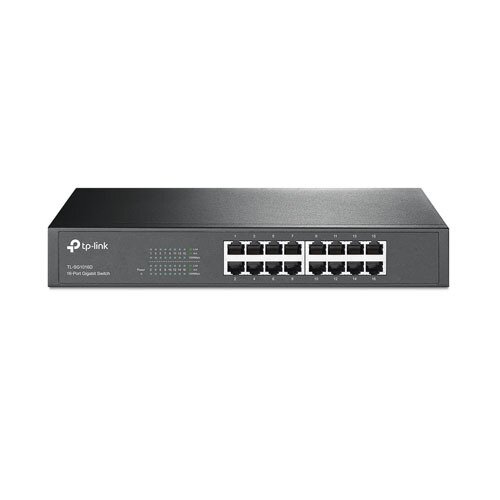

TL-SG1016D 16-Port Gigabit Desktop/Patch Panel Switch, TP-LINK

Product Features

Overview

• The TL-SG1016D / TL-SG1024D Gigabit Ethernet Switch offers a high-performance, low-cost upgrade to 1000 Mbps networking
• All 16 / 24 ports support AUTO MDI/MDIX, eliminating cable-type concerns
• Plug and play design requires no configuration
• Energy-efficient technology reduces overall power consumption
• Most packaging materials are recyclable, making it an eco-friendly solution

TP-Link Green Technology

• Automatically adjusts power consumption based on link status and cable length
• Reduces the network’s carbon footprint
• Complies with EU RoHS standards restricting hazardous materials

Enhanced Performance

• 16 / 24 Gigabit RJ45 ports support large file transfers and 10/100 Mbps devices
• Non-blocking switching architecture delivers full wire-speed throughput
• 10 KB jumbo frame significantly improves large data transfer performance
• IEEE 802.3x flow control and backpressure improve reliability
• Ideal for upgrading to Gigabit while protecting previous investments

Ease of Use

• AUTO MDI/MDIX removes the need for crossover cables
• Auto-negotiation detects and adjusts to 10/100/1000 Mbps devices
• Hassle-free installation

Product Specifications

Hardware Features

• Standards and protocols: IEEE 802.3i, 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface:
  • 16 × 10/100/1000 Mbps RJ45 ports
  • AUTO Negotiation / AUTO MDI/MDIX
• Network media:
  • 10BASE-T: UTP Cat 3/4/5 (max 100 m)
  • 100BASE-TX / 1000BASE-T: UTP Cat 5/5e or above (max 100 m)
• Fan quantity: Fanless
• Power supply: 100–240 VAC, 50/60 Hz
• Dimensions: 294 × 180 × 44 mm
• Max power consumption: 9.26 W (220 V / 50 Hz)
• Max heat dissipation: 31.60 BTU/h

Performance

• Switching capacity: 32 Gbps
• Packet forwarding rate: 23.8 Mpps
• MAC address table: 8K
• Jumbo frame: 10 KB
• Green technology: Yes
• Transfer method: Store-and-Forward

Others

• Certifications: FCC, RoHS
• Package contents:
  • 16-Port Gigabit Desktop/Rackmount Switch
  • Power cord
  • Installation guide
  • Rackmount kits
  • Rubber feet
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10%–90% non-condensing
  • Storage humidity: 5%–90% non-condensing
