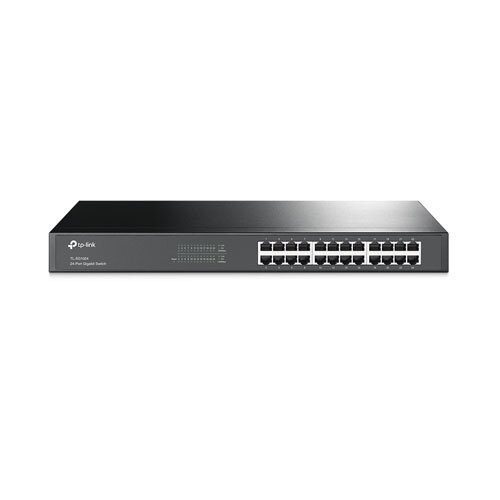

TL SG1024 24-port Gigabit rack-mount switch, TP-Link

Product Features

What This Product Does

• The TL-SG1024 Gigabit Ethernet Switch provides a high-performance and cost-effective upgrade to a 1000 Mbps network
• All 24 ports support AUTO MDI/MDIX, eliminating concerns about cable types
• Plug and play design with no configuration required
• Energy-efficient technology reduces power consumption for eco-friendly networking

TP-Link Green Technology

• Automatically adjusts power usage based on link status
• Helps reduce the network’s carbon footprint
• Complies with EU RoHS standards
• Uses recyclable packaging materials

High Performance

• 24 × Gigabit RJ45 ports compatible with 10/100 Mbps Ethernet devices
• Non-blocking switching architecture ensures maximum throughput
• 10 KB Jumbo Frame significantly improves large file transfers
• IEEE 802.3x flow control and backpressure ensure reliable operation

Ease of Use

• AUTO MDI/MDIX eliminates the need for crossover cables
• AUTO Negotiation automatically detects and adjusts link speeds
• Simple and hassle-free installation

Product Specifications

Hardware Features

• Standards and protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
• Interface:
  • 24 × 10/100/1000 Mbps RJ45 ports
  • AUTO Negotiation / AUTO MDI/MDIX
• Network media:
  • 10BASE-T: UTP Cat 3/4/5 (max 100 m)
  • 100BASE-TX / 1000BASE-T: UTP Cat 5/5e or above (max 100 m)
• Fan quantity: Fanless
• Power supply: 100–240 VAC, 50/60 Hz
• Mounting: Rack-mountable
• Dimensions: 440 × 180 × 44 mm
• Max power consumption: 13.08 W
• Max heat dissipation: 44.63 BTU/h

Performance

• Switching capacity: 48 Gbps
• Packet forwarding rate: 35.7 Mpps
• MAC address table: 8K
• Jumbo frame: 10 KB
• QoS: 802.1p / DSCP (V11 and later versions only)
• Transfer method: Store-and-Forward

Others

• Certifications: FCC, CE, RoHS
• Package contents:
  • 24-Port Gigabit Rackmount Switch
  • Power cord
  • Installation guide
  • Rackmount kits
  • Rubber feet
• Environment:
  • Operating temperature: 0–40 °C (32–104 °F)
  • Storage temperature: ?40–70 °C (?40–158 °F)
  • Operating humidity: 10%–90% non-condensing
  • Storage humidity: 5%–90% non-condensing
